044 103 10002
| 制造商 | |
| 描述 | Conn Housing PL 2 POS Crimp ST Cable Mount CONN PLUG 2POS MINI PUSH-ON connector;plastic circ;str plug housing;for 2 crimp socket cont;sealed;ip65/ip67 Standard Circular Connector 2P PLUG PLUG, SERIES 44, 2 WAY connector, plastic circ, str plug housing, for 2 crimp socket cont, sealed, ip65/ip67 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Boxed |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 8 A |
机械参数
| 颜色 | Black | 重量 | 0.003 |
| 包装方式 | Bulk | 导线线规 | 14-18 AWG |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 触头类型 | Crimp |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Plug for Female Contacts | 接触镀层 | Silver |
| 紧固类型 | Push-Pull | 安装样式 | Free Hanging |
| 排数 | 1 | 封装形式 | Plastic |
| 插入角度 | :- | 壳体材料 | Thermoplastic Rubber |
| 主要材料 | Sealed | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 触点数 | 2 |
| 介电材料 | Santoprene | 绝缘直径 | 0.08 to 013 " |
| 位数 | 2 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Plastic | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 44 |
| 制造商全称 | 44 Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | :105°C | ||
文档与媒体
相关型号

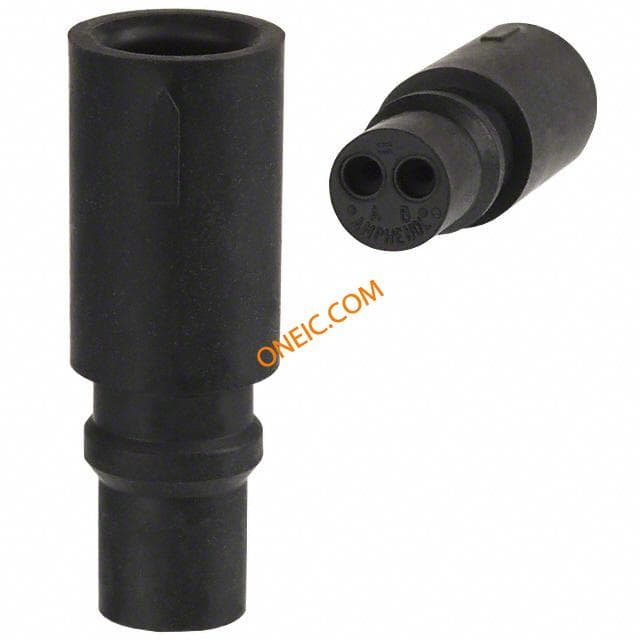

044 104 10002 02
