点击放大查看

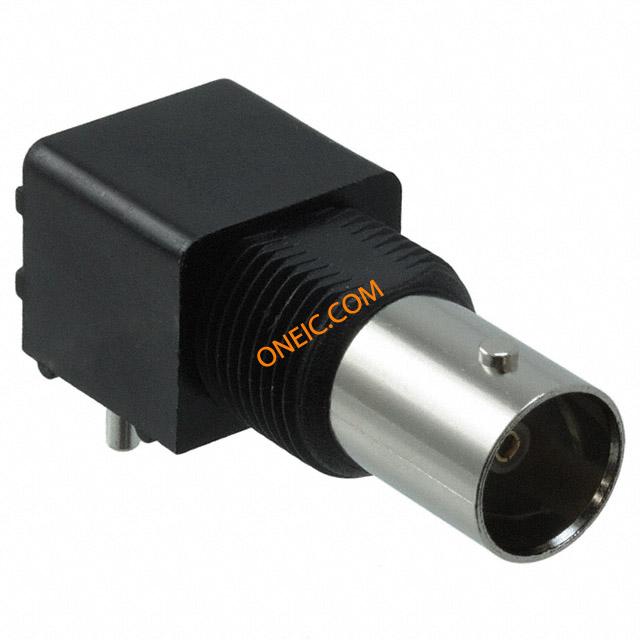

031-71053

制造商	Amphenol Corporation
描述	Conn BNC RCP 0Hz to 1GHz 75Ohm Solder RA Thru-Hole Gold CONN BNC JACK R/A 75 OHM PCB Connector; RF; BNC; Rt. Angle; PCB Jack; Bulkhead Mnt; 75 Ohm; Nickel/Gold
分类	连接器解决方案同轴连接器(RF)射频同轴连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

频率	0 to 1G	阻抗	75 Ohm
额定电压	500V	最大频率	1GHz

机械参数

高度	13.1	包装方式	Tray
本体表面处理	Nickel	端接方式	Solder
基体材料	Brass	外壳颜色	Black
安装类型	Through Hole	连接器类型	Jack, Female Socket
接触镀层	Gold	紧固类型	Bayonet Lock
壳体镀层	Nickel	连接器样式	BNC
触头材料	Beryllium Copper\|Phosphor Bronze	总长度	35.56
屏蔽层端接方式	Solder	接触件端接	Solder
介电材料	Polypropylene (PP)	绝缘材料 - 类型	Polytetrafluoroethylene
中心触点镀层工艺	Gold	中心触点材料	Phosphor Bronze

产品信息

类型	BNC	连接器性别	RCP
产品特性	Board Guide, Isolated	连接类型	PCB

环境参数

工作温度

-55°C ~ 85°C

相关型号

000-5275

amphenol

Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN PLUG BNC SHORTING W/O CHAIN Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Nickel; forJacksandRecep; Straight; 75Ohms

¥40.5280

详情

031-6

amphenol

Connector Accessories BNC 50Ohm Male Cap and Chain Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN BNC MALE CAP & CHAIN Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Nickel; forJacksandRecep; Str.; 75Ohms

¥16.7960

详情

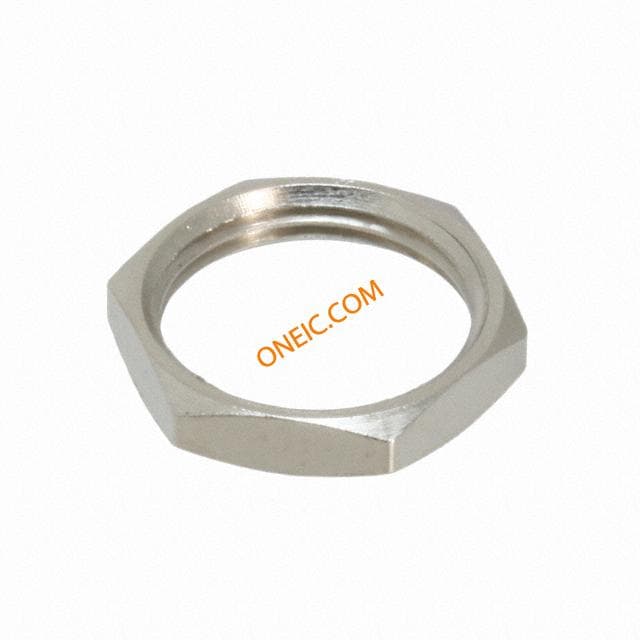

31-5652
