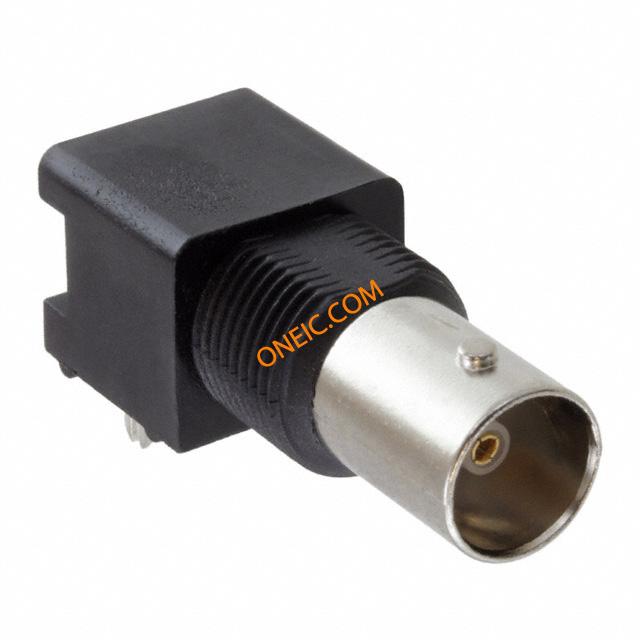

031-71053-1010
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 1GHz 75Ohm Solder RA Thru-Hole Gold CONN BNC JACK R/A 75 OHM PCB Connector; RF; BNC; Rt. Angle; PCB Jack; Bulkhead Mnt; 75 Ohm; Nickel/Gold |
| 分类 |
商业参数
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 阻抗 | 75 Ohm | 额定电压 | 500V |
| 最大频率 | 1GHz | ||
机械参数
| 高度 | 13.1 mm | 包装方式 | Tray |
| 本体表面处理 | Nickel | 端接方式 | Solder |
| 基体材料 | Zinc Die Cast | 外壳颜色 | Silver |
| 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Through Hole | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 总长度 | 35.6 mm |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polypropylene (PP) | 绝缘材料 - 类型 | Polytetrafluoroethyl |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Right Angle | ||
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 产品特性 | Board Lock, Isolated | 连接类型 | PCB |
环境参数
| 工作温度 | -55°C ~ 85°C | ||
