031-5486
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold CONN BNC JACK R/A 50 OHM PCB connector, rf coaxial, bnc rt angle pcb blkhd jack recept, isolated, round pins |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 1GHz |
机械参数
| 深度 | 14.73 mm | 高度 | 13.15 mm |
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | White | 安装类型 | Through Hole |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 安装样式 | Through Hole |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 触头材料 | Beryllium Copper|Phosphor Bronze | 总长度 | 35.56 mm |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polypropylene (PP) | 绝缘材料 - 类型 | Polytetrafluoroethylene/Copolymer |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Right Angle | ||
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 产品特性 | Board Guide, Isolated | 连接类型 | PCB |
| 射频系列/标准 | 031-5486 | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
文档与媒体
相关型号
000-5275
amphenol
Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN PLUG BNC SHORTING W/O CHAIN Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Nickel; forJacksandRecep; Straight; 75Ohms
031-6
amphenol
Connector Accessories BNC 50Ohm Male Cap and Chain Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN BNC MALE CAP & CHAIN Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Nickel; forJacksandRecep; Str.; 75Ohms
31-5652
Amphenol RF

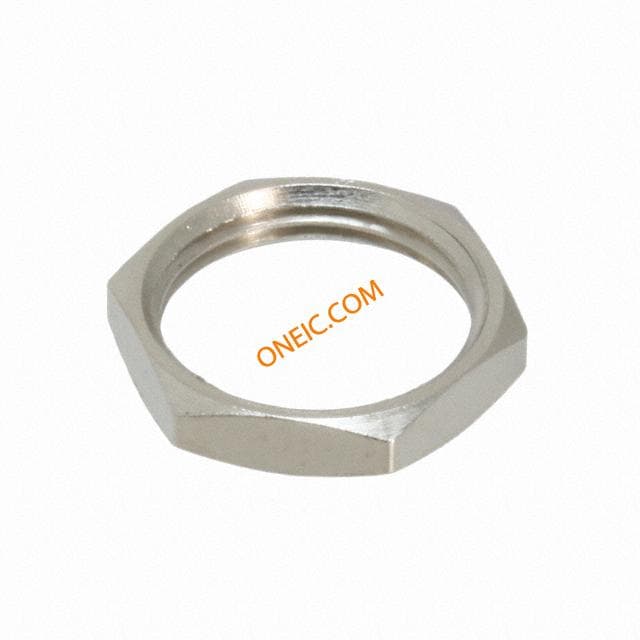

RF Connectors NUT ONLY 1 PIECE HEX NUT FOR BNC RECEPTACLE Screws & Fasteners NUT ONLY 1 PIECE Connector Accessories Hex Nut for BNC Bulkhead PCB Receptacle Nickel Finish HEX NUT
