点击放大查看

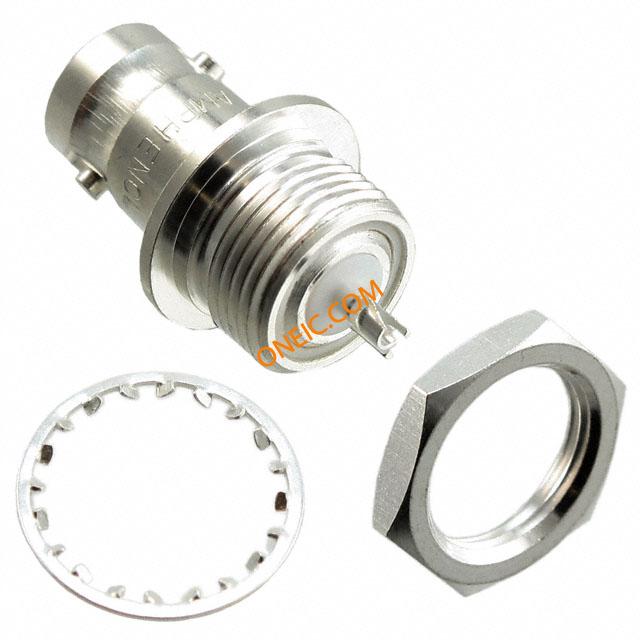

031-4890-1
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Silver CONN BNC JACK STR 50 OHM SOLDER connector, rf coaxial, bnc bulkhead recept, front mount, isolated, solder cup termin |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4G | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 阻抗（最大）（Zzt） | 50 Ohm | 连接器类型 - 电压输入 | Solder Cup |
机械参数
| 包装方式 | Bulk | 本体表面处理 | Silver |
| 端接方式 | Solder Cup | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Silver |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 壳体镀层 | Silver | 连接器样式 | BNC |
| 触头材料 | Beryllium Copper|Phosphor Bronze | 总长度 | 27 mm |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder Cup |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene/Copolymer |
| 中心触点镀层工艺 | Silver | 外部壳体颜色 | Silver |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Straight |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 产品特性 | Isolated | 主要用途 | Isolated |
| 连接类型 | Wire | 输出配置 | Panel Mount, Bulkhead - Rear Side Nut |
环境参数
| 防护等级 | Solder | 工作温度 | -65°C ~ 165°C |
