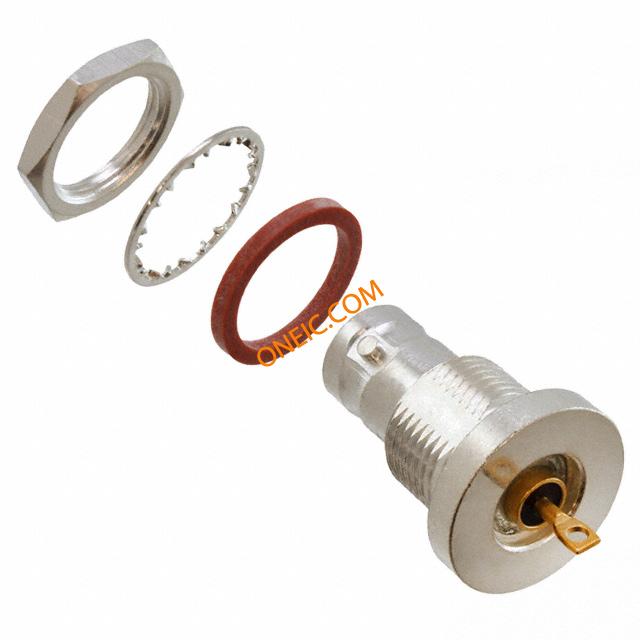

031-4237
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold Conn BNC F 50Ohm ST Panel Mount Gold Bag CONN BNC JACK STR 50 OHM SOLDER connector, rf coaxial, bnc blkhd recept, rear mount, spade terminal, hermetic, 50 ohm Connector; RF; BNC; Straight; Panel-Solder Jack; Bulkhead Mnt; 50 Ohm |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 阻抗（最大）（Zzt） | 50 Ohm | 连接器类型 - 电压输入 | Solder Eyelet |
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 直径 | 17.44 mm | 包装方式 | Bag |
| 本体表面处理 | Silver | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 壳体镀层 | Silver | 连接器样式 | BNC |
| 触头材料 | Beryllium Copper|Phosphor Bronze | 总长度 | 34.11 mm |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder Eyelet |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene/Copolymer |
| 中心触点镀层工艺 | Gold | 外部壳体颜色 | Silver |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 已删除 | Compliant | 连接类型 | Wire |
| 输出配置 | Panel Mount, Bulkhead - Front Side Nut | ||
环境参数
| 防护等级 | Solder | 工作温度 | -65°C ~ 165°C |
