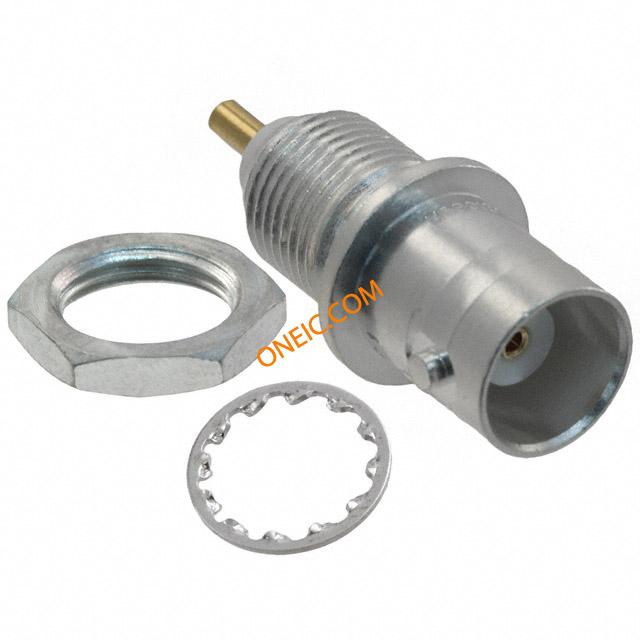

031-3376
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold CONN BNC JACK STR 50 OHM SOLDER Connector; RF; BNC; Straight; Panel-Solder Jack; Bulkhead Mnt; 50 Ohm |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 4G | 阻抗 | 50 Ohm |
| 隔离 | Polytetrafluoroethylene/Copolymer | 额定电压 | 500V |
| 最大频率 | 4GHz | 连接器阻抗 | Solder Cup |
机械参数
| 长度 | 30.2 | 材料（通用） | Brass |
| 包装方式 | Bulk | 本体表面处理 | Silver |
| 方向 | Straight | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount |
| 连接器类型 | Wire | 接触镀层 | Silver |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC |
| 触头材料 | Beryllium Copper|Phosphor Bronze | 总直径 | 12.7 |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder Cup |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | ||
产品信息
| 类型（缩写） | BNC | 连接器性别 | RCP |
环境参数
| 工作温度 | -65°C ~ 165°C | ||
