点击放大查看

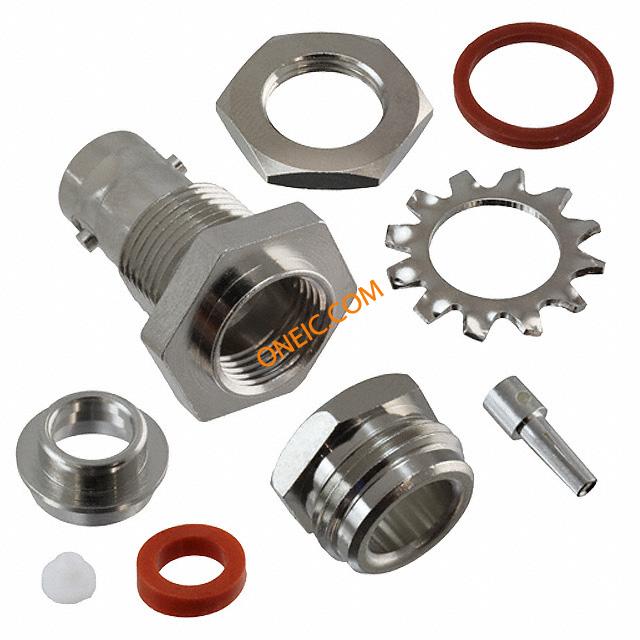

031-207
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver CONN BNC JACK STR 50 OHM SOLDER connector, rf coaxial, bnc blkhd jack, clamp/solder, for rg59, 62, 140, 210, 50 ohm |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
机械参数
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 电缆组 | RG-59, 62, 71 | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Silver | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC | 触头材料 | Beryllium Copper|Phosphor Bronze |
| 屏蔽层端接方式 | Clamp | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Silver |
| 中心触点材料 | Beryllium Copper | ||
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 031-207 |
环境参数
| 工作温度 | -65°C ~ 165°C | ||
