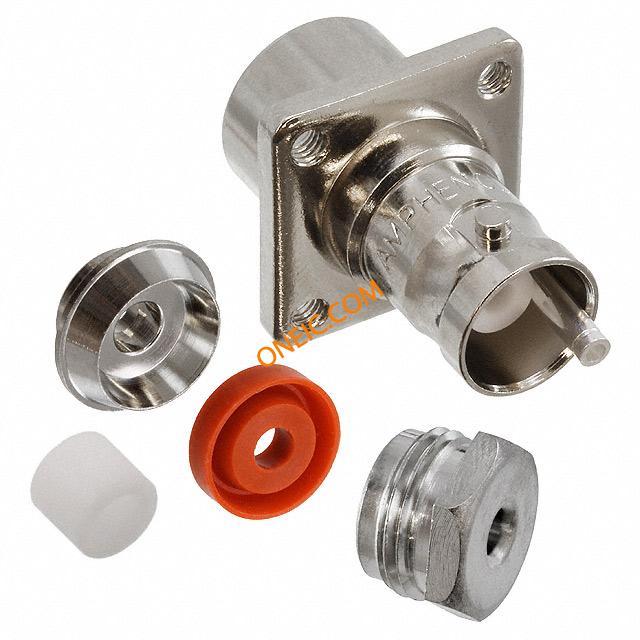

000-86425
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC F 0Hz to 4GHz 50Ohm Solder ST Panel Mount Silver/Gold CONN BNC JACK STR 50 OHM SOLDER Connector; RF; BNC; Straight; Cable Jack; 50 Ohm; RG-188 A/U |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
机械参数
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 电缆组 | RG-174, 179, 187, 188, 316 | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Silver|Gold | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC | 触头材料 | Beryllium Copper|Phosphorous Bronze |
| 屏蔽层端接方式 | Clamp | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Silver |
产品信息
| 类型 | BNC | 连接器性别 | F |
| 连接类型 | Coaxial Cable | ||
环境参数
| 防护等级 | Weatherproof | 工作温度 | -65°C ~ 165°C |
