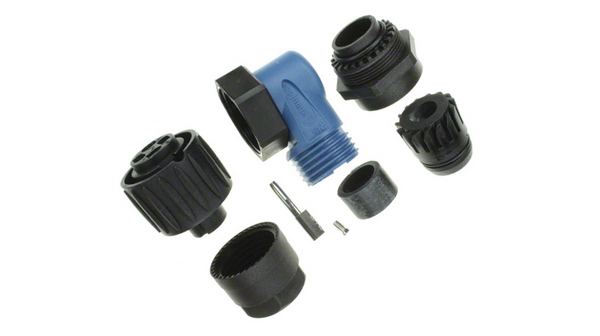

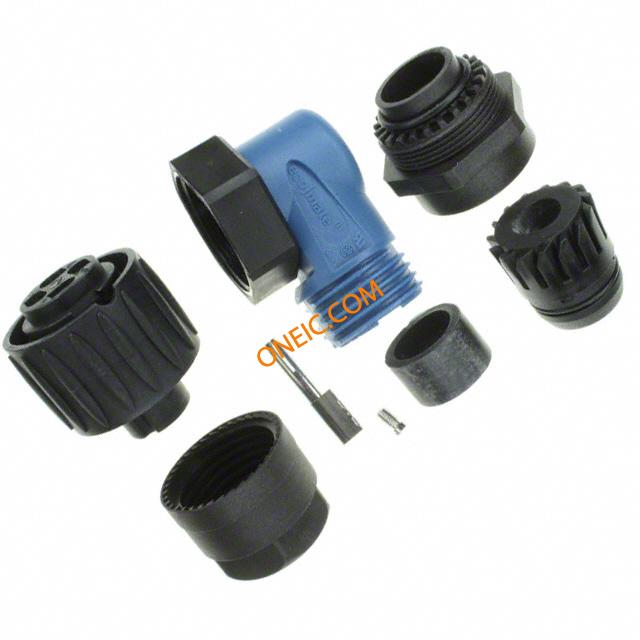

C016 20F003 100 10
| 制造商 | |
| 描述 | Circular DIN Connectors 3+PE FEM R/A BLUE SCREW SILVER CONTACT CONN FMALE PLUG 3+PE R/A SLV BLU CONNECTOR, CIRCULAR, RCPT, 3+PE, CABLE SOCKET, FREE, 90DEG, SCREW, 3P+E WAY connector, plastic circ, rt angle fem cable conn, 3+gnd silver plt, screw term, blue Connector: circular; plug; female; Series: ECOMATE (C016); PIN:4 Cable socket, 90° 3+PE, C016 20F003 100 10, Amphenol |
| 分类 |
商业参数
| 产品类别 | Circular DIN Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 认证机构 | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 400V | 供电电压 | DIN |
| 接触电阻 | :5mohm | 最大额定电流 | 16A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 颜色 | Blue | 重量 | 0 |
| 包装方式 | Bulk | 导线线规 | :14AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Screw | 重量（g） | 48.80000 |
| 触头类型 | Socket | 安装类型 | Free Hanging (In-Line), Right Angle |
| 释放力 | :30N | 行程角度 | Right |
| 电缆直径 | 6 mm to 12.5 mm | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | :Right Angle |
| 连接器用途 | Threaded | 插入角度 | :- |
| 插入力 | :15N | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Nylon 6.6 (Polyamide 6.6) | 触头材料 | :- |
| 壳体材料 | Polyamide | 包装数量 | 5 |
| 主要材料 | DIN | 连接器 - 电缆 | plug |
| 端接样式 | Screw | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Blue / Black | 触点数 | 3 |
| 接触件端接 | :Screw | 介电材料 | Polyamide |
| 位数 | 4 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 典型触点布局 | 3 + 1 Ground (PE) |
| 外部壳体材料 | :Polyamide 6.6/PA6 | 线规或范围 - mm² | :2.5mm² |
| 触点材料 - 镀层 | silver plated | 第一连接器安装类型 | :Cable |
| 第一连接器安装特征 | 3+PE | 外径-未扩张 | :12.5mm |
产品信息
| SPG | 5 | 类型 | Cable Socket |
| 连接器性别 | :Receptacle | 系列 | eco mate |
| 产品特性 | Cable Clamp | 制造商全称 | C016 Series |
| 产品子类型 | Connectors | 适配器系列 | ECOMATE (C016) |
| 单元数量 | 1 | 应用细节 | Commercial |
环境参数
| 密封等级 | IP 67 | 插拔次数 | :500 |
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 100°C | ||
