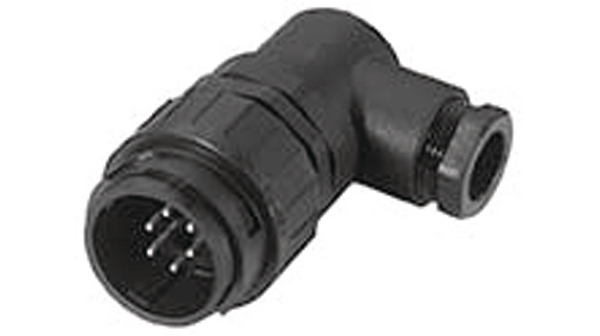

C016 10K008 002 1
| 制造商 | |
| 描述 | Heavy Duty Power Connectors R/A MALE CON 8P CRMP FIR 8-10mm CABLE CONN PLUG 8+PE CBL PIN RA CRIMP connector, circ, rt angle male cable conn, for 8-10mm cable, for 8 crimp pin contact Male cable connector, angled 8+PE, C016 10K008 002 1, Amphenol |
| 分类 |
商业参数
| 其他名称 | C01610K0080021 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 400 V | 极数 | 8+PE |
| 最大额定电流 | 12 A | 额定电流 - 设备输入口 | 12 |
| 保护电压（VP）（2416） | IP 65 | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 触点尺寸 | 1.6mm | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line), Right Angle | 电缆端类型 | 8...10 mm |
| 连接器类型 | Plug for Male Contacts | 接触镀层 | Silver / Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | angled |
| 锁定特性 | Bayonet | 壳体材料 | Polyamide (PA 66) |
| 端接样式 | Crimp | 连接器颜色 | black |
| 位数 | 9 | 外壳尺寸-插件 | 1 |
| 第一连接器极性 | Male | 外壳材料及表面处理 | Polyamide |
产品信息
| 备注 | Contacts Not Provided | 系列 | C16-3 |
| 产品特性 | Cable Clamp | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40...+125 °C |
