点击放大查看

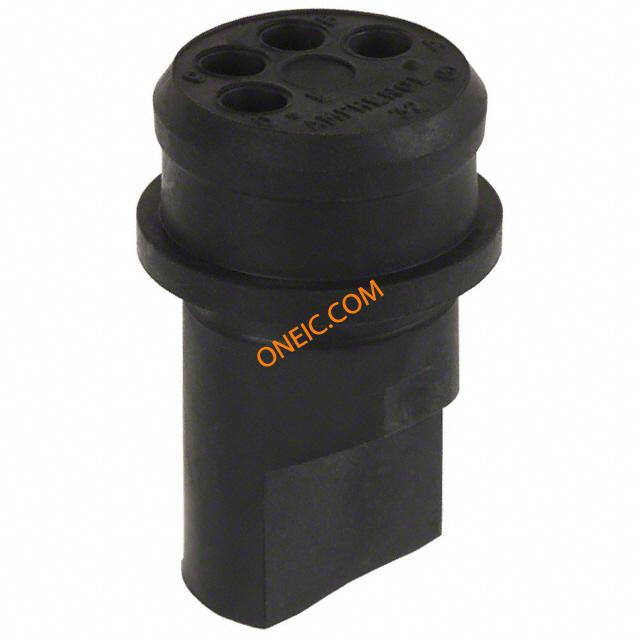

044 103 10004
| 制造商 | |
| 描述 | Standard Circular Connector 4P PLUG CONN PLUG 4POS MINI PUSH-ON PLUG, SERIES 44, 4 WAY connector, plastic circ, str plug housing, for 4 crimp socket cont, sealed, ip65/ip67 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 500 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 8 A |
机械参数
| 颜色 | Black | 重量 | 0.005 |
| 包装方式 | Bulk | 导线线规 | 18-14 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Plug for Female Contacts | 接触镀层 | Silver |
| 紧固类型 | Push-Pull | 安装样式 | Free Hanging |
| 封装形式 | Plastic | 插入角度 | :- |
| 壳体材料 | Thermoplastic Rubber | 主要材料 | Sealed |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 触点数 | 4 | 介电材料 | Santoprene |
| 绝缘直径 | 0.08 to 013 " | 位数 | 4 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Plastic |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Cable Plug |
| 连接器性别 | :Socket | 系列 | 44 |
| 制造商全称 | 44 Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | :105°C | ||
文档与媒体
相关型号
044 102 1414S 5000
Amphenol Tuchel
Standard Circular Contacts Socket Contact 5K REEL CONTACT SKT CRIMP 14-18 AWG TIN REEL FEMALE CONTACT 5K Socket Circular Contacts
044 102 1414S 1000 101
amphenol
Contact SKT Crimp ST Cable Mount Bag Standard Circular Contacts BAG OF 1000 SKT CNTS CONTACT SKT CRIMP 14-18 AWG TIN connector comp;044-series;poke-home crimp socket contact;for 14;16;18awg wire connector comp, 044-series, poke-home crimp socket contact, for 14, 16, 18awg wire
356-258
amphenol canada, corp.
ASSEMBLY TOOLS, INSERTION AND REMOVAL TOOLS Hand Tools 44SERIES INSERT TOOL *NCNR Insertion-tool TOOL INSERTION 44 SERIES INSERTION TOOL, FOR SERIES 44 tool, insertion tool for contacts for the 044-series

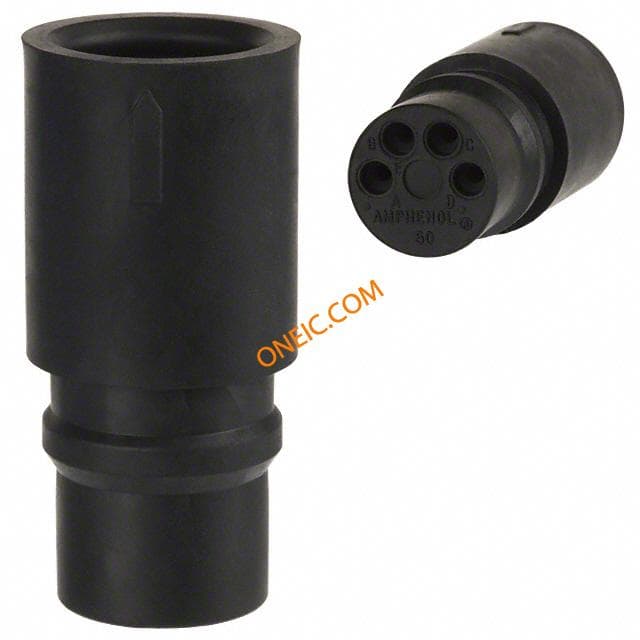

044 104 10004 02
