点击放大查看

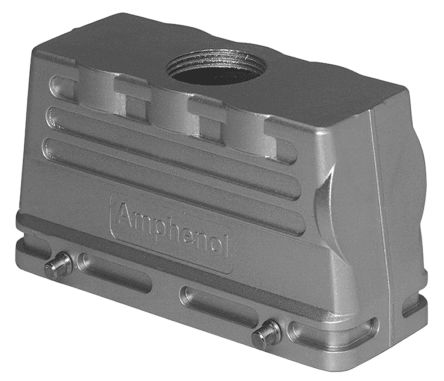

C146 21R024 600 8
| 制造商 | |
| 描述 | HOOD METRIC HOOD, HIGH, TOP ENTRY, SIZE 24, M32 CONN HOOD TOP ENTRY SZE24 M32 Amphenol Heavy Mate C146 系列 顶入 电源连接器 , 电缆安装 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85389099 | ||
机械参数
| 尺寸 | E24 | 重量 | 0.225 |
| 包装方式 | Bulk | 出线方向 | :Top |
| 螺纹尺寸 | M32 | 连接器类型 | Hood |
| 锁定特性 | :2 Lever | 本体材料 | :Aluminium |
| 壳体材料 | Aluminum Alloy, Die Cast | 尺寸/外形 | 4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm) |
| 外壳尺寸-插件 | :E24 | ||
产品信息
| 样式 | Top Entry | 系列 | * |
| 锁定位置 | Locking Clip on Base Bottom | 附件类型 | :Hood |
| 适用产品/相关产品 | :C146 Series Heavy Duty Rectangular Connectors | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 100°C |
