点击放大查看

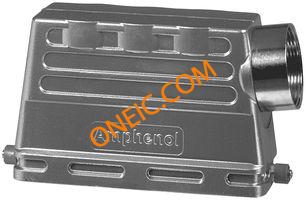

C146 21R024 507 8
| 制造商 | |
| 描述 | HOUSING HOOD, E24, SIDE ENTRY, ALUMINIUM HOOD, SIDE ENTRY, HIGH, SIZE E24, M40 CONNECTORHOUSING HIGHT EXIT SID |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | C14621R0245078 | 标准包装数量 | 10 |
合规参数
| SVHC | :No SVHC (16-Dec-2013) | 海关税号 | 85369010 |
机械参数
| 尺寸 | E24 | 重量 | 0 |
| 包装方式 | Bulk | 出线方向 | :Side |
| 螺纹尺寸 | M40 | 连接器类型 | Hood |
| 锁定特性 | :1 Lever | 本体材料 | :Aluminium |
| 壳体材料 | Aluminum, Die Cast | 尺寸/外形 | 4.724" L x 1.693" W x 2.992" H (120.00mm x 43.00mm x 76.00mm) |
| 外壳尺寸-插件 | :E24 | ||
产品信息
| 样式 | Side Entry | 系列 | :C146 heavy mate |
| 锁定位置 | Side Clip on Base Bottom | 适用产品/相关产品 | :C146 heavy mate Series Heavy Duty Rectangular Connectors |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 100°C |
