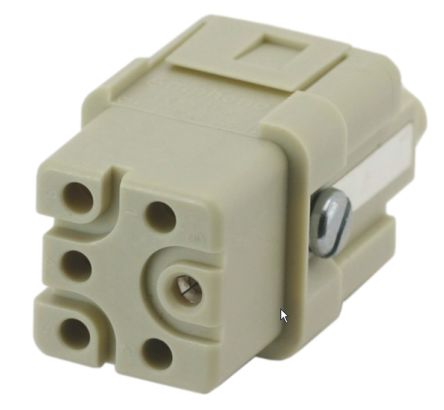

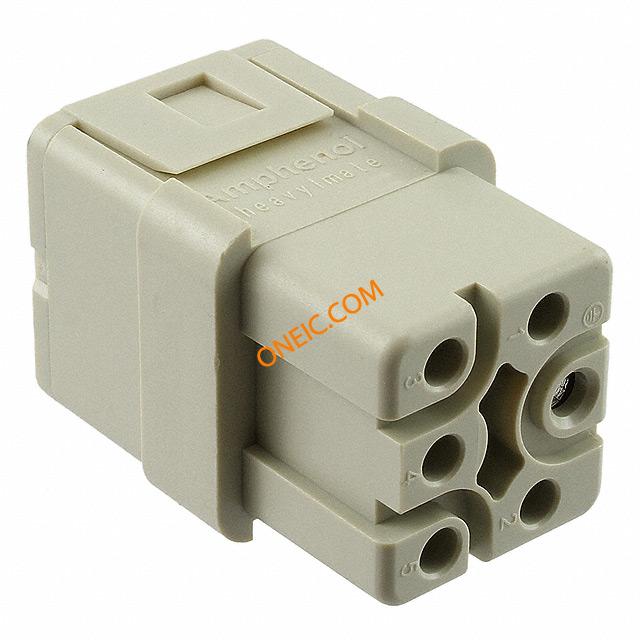

C146 10B005 500 12
| 制造商 | |
| 描述 | SOCKET INSERT 5+PE RECTANGULAR INSERT, RECEPTACLE, 5+PE, CRIMP INSERT, RECEPTACLE, 5+PE WAY, CRIMP INSERT FEMALE 5POS+1GND CRIMP Amphenol 2行 5针 5+PE极 插座 电源连接器 , 电缆安装 07P FEMALE CONNECTOR |
| 分类 |
商业参数
| 标准包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 400V | ||
机械参数
| 尺寸 | A3 | 颜色 | Gray |
| 重量 | 0 | 包装方式 | Bulk |
| 触头类型 | heavy|mate®, C146 E, EE | 连接器类型 | Insert without Contacts |
| 排数 | :2 | 插入件材料 | :Combination |
| 壳体材料 | Polycarbonate (PC) | 端接样式 | Crimp |
| 位数 | 5+Ground | 外壳尺寸-插件 | :Q5 |
产品信息
| 连接器性别 | Female | 系列 | :C146 heavy mate Q |
| 适用产品/相关产品 | :C146 heavy mate Q Series Crimp Contacts | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
VN02 025 0035 1C
Amphenol-Tuchel Electronics
SOCKET CONTACT 100PCS CONTACT, SOCKET, 20AWG, CRIMP CONTACT, SOCKET, 20 AWG, CRIMP Amphenol Heavy Mate F 系列 1 路 母座 触点 , 额定电流 100A/ 500 V, 适用于E EE F Q 型模块 AWG 20 TURNED CRIMP CONTACT
VN02 025 0036 1C
Amphenol-Tuchel Electronics
SOCKET CONTACT 100PCS CONTACT, SOCKET, 18AWG, CRIMP CONTACT, SOCKET, 18 AWG, CRIMP Amphenol Heavy Mate F 系列 1 路 母座 触点 , 额定电流 100A/ 500 V, 适用于E EE F Q 型模块 AWG 18 TURNED CRIMP CONTACT
VN02 025 0037 1C
Amphenol-Tuchel Electronics
SOCKET CONTACT 100PCS CONTACT, SOCKET, 16AWG, CRIMP CONTACT, SOCKET, 16 AWG, CRIMP Contact; female; 1.5mm2; 16AWG; C146; silver plated; crimped Amphenol Heavy Mate F 系列 1 路 母座 触点 , 额定电流 100A/ 500 V, 适用于E EE F Q 型模块 AWG 16 TURNED CRIMP CONTACT
VN02 025 0039 1C
Amphenol-Tuchel Electronics
SOCKET CONTACT 100PCS CONTACT, SOCKET, 12AWG, CRIMP CONTACT, SOCKET, 12 AWG, CRIMP Amphenol Heavy Mate F 系列 1 路 母座 触点 , 额定电流 100A/ 500 V, 适用于E EE F Q 型模块
VN02 025 0038 1C
Amphenol-Tuchel Electronics
SOCKET CONTACT 100PCS CONTACT, SOCKET, 14AWG, CRIMP CONTACT, SOCKET, 14 AWG, CRIMP Amphenol Heavy Mate F 系列 1 路 母座 触点 , 额定电流 100A/ 500 V, 适用于E EE F Q 型模块 AWG 14 TURNED CRIMP CONTACT
VN02 025 0035 2C
Amphenol-Tuchel Electronics
SOCKET CONTACT 100PCS
VN02 025 0036 2C
Amphenol-Tuchel Electronics
SOCKET CONTACT 100PCS
VN02 025 0037 2C
Amphenol-Tuchel Electronics
SOCKET CONTACT 100PCS
VN02 025 0038 2C
Amphenol-Tuchel Electronics
SOCKET CONTACT 100PCS
VN02 025 0039 2C
Amphenol-Tuchel Electronics
SOCKET CONTACT 100PCS
N17 045 000 1
Amphenol-Tuchel Electronics
CODING ELEMENT CODING ELEMENT, HEAVY DUTY CONNECTOR Amphenol Heavy Mate Q 系列 公插/母座 编码引脚 , 额定电流 35A/ 400 V
C146 10F008 001 12
Amphenol-Tuchel Electronics
BULKHEAD HOUSING 8POS CONN BASE BOTTOM ENTRY Amphenol 电源连接器 , 面板安装
C146 10A005 500 12
Amphenol-Tuchel Electronics
PIN INSERT 5+PE RECTANGULAR INSERT, PLUG, 5+PE, CRIMP INSERT, PLUG, 5+PE WAY, CRIMP INSERT MALE 5POS+1GND CRIMP Amphenol 2行 5针 5+PE极 插头 电源连接器 , 电缆安装 07P MALE CONNECTOR
