点击放大查看

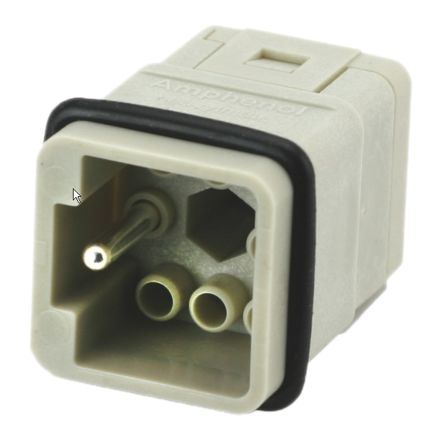

C146 10A007 500 12
| 制造商 | |
| 描述 | PIN CONNECTOR 7POS INSERT MALE 7POS+1GND CRIMP Amphenol 3行 7针 7+PE极 插头 电源连接器 , 电缆安装 |
| 分类 |
商业参数
| 标准包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 400V | ||
机械参数
| 尺寸 | A3 | 颜色 | Gray |
| 包装方式 | Bulk | 方向 | 直 |
| 触头类型 | heavy|mate®, C146 D, DD, M | 安装类型 | 电缆安装 |
| 连接器类型 | Insert without Contacts | 接触镀层 | 金，银 |
| 排数 | 3 | 触头材料 | 铜合金 |
| 壳体材料 | Polycarbonate (PC) | 端接排数 | 压接 |
| 端接样式 | Crimp | 触点数 | 7 |
| 位数 | 7+Ground | ||
产品信息
| 类型 | Q 型插件 | 连接器性别 | Male |
| 极性 | 7+PE | 测量范围 | Heavy Mate |
| 基础产品编号 | C146 | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
