点击放大查看

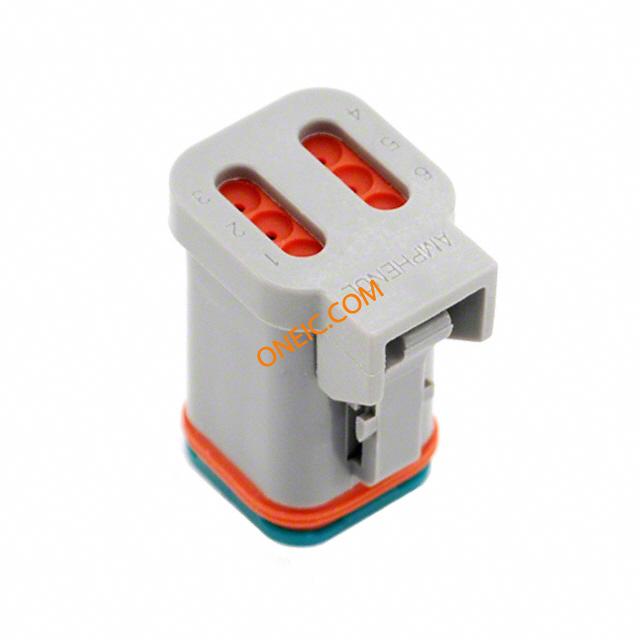

AT06-6S-EC01
| 制造商 | |
| 描述 | Conn Power PL 6 POS ST Cable Mount 6 Terminal 1 Port Automotive Connectors Plug 6 Way End Cap Conn Housing PL 6 POS Crimp ST Cable Mount CONN PLUG 6POS 14-20AWG SIZE 16 |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | 889-1033 |
| 产品类别 | Automotive Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 13 A | ||
机械参数
| 颜色 | Gray | 深度 | 32.7 mm |
| 高度 | 26.3 mm | 包装方式 | Bulk |
| 导线线规 | 14-20 AWG | 触头类型 | Plug |
| 外壳颜色 | Gray | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | Thermoplastic | 总长度 | 20.7 mm |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Power |
| 连接器性别 | PL | 系列 | AT |
| 产品特性 | Cap (Cover) | 端口数 | 1 Port |
环境参数
| 工作温度 | -55C to 125C | 结工作温度 | 125C |
文档与媒体
