AT06-2S
| 制造商 | |
| 描述 | Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port Conn Housing PL 2 POS Crimp ST Cable Mount CONN PLUG 2POS 14-20AWG SIZE 16 AT 2 Pin Plug Automotive Connectors Plug 2 Way PLUG, AT, 2 WAY, SKT 2 PIN PLUG Connector: wire-wire; AT; plug; female; PIN:2; Locking: lock Crimp housing Poles 2 AT, AT06-2S, Amphenol Amphenol 2路 电缆安装 公 电源连接器 02P AT-SERIES PIN PLUG GRAY |
| 分类 |
商业参数
| 产品 | Housings | 零件号别名 | 14R5598 427-0013 |
| 产品类别 | Automotive Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366990 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 击穿电压 | :1500V | 最大额定电流 | :13A |
| 连接器类型 - 电压输入 | for size 16 terminals | ||
机械参数
| 颜色 | Gray | 深度 | 28.5mm |
| 宽度 | 14.95mm | 重量 | 0.003 |
| 材料（通用） | :Thermoplastic | 包装方式 | Bulk |
| 导线线规 | 14-20 | 触头类型 | Female Socket |
| 外壳颜色 | Gray | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 接触镀层 | Nickel |
| 紧固类型 | Latch Lock | 安装样式 | for cable |
| 排数 | 1 | 锁定特性 | lock |
| 材料表面处理 | :- | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 14.95 |
| 包装数量 | 1500 | 主要材料 | Industrial |
| 连接器 - 电缆 | plug | 连接器颜色 | grey |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| SPG | 1500 | 备注 | Contacts Not Provided |
| 类型 | Power | 连接器性别 | PL |
| 系列 | AT | 制造商全称 | AT Series |
| 适配器系列 | AT | 单元数量 | 1 |
环境参数
| 工作温度 | :125°C | ||
文档与媒体
相关型号
A114017
amphenol-sine systems
BLANK SEAL 16AWG SEAL BLANK 16AWG Blank Seal 16Awg Automotive Connectors Blank Seal 16 AWG Connector Accessories Sealing Plug White Size 16 SEAL PIN, BLANK PIN Sealing pin; AHD, AT, ATP; male-female; Size:12,16 Sealing plug, A114017, Amphenol Amphenol AT/AHD 系列 Seal Plug, 使用于汽车连接器 01P BLANK SEAL PLUG AWG 16
AT04-2P
amphenol-sine systems
Conn Power RCP 2 POS ST Cable Mount 2 Terminal 1 Port Conn Housing RCP 2 POS Crimp ST Cable Mount CONN RCPT 2POS 14-20AWG SIZE 16 AT 2 Pin Receptacle Automotive Connectors AT Series Receptacle 2 Way RECEPTACLE, AT, 2 WAY, PIN 2 PIN RECEPTACLE Connector: wire-wire; AT; plug; male; PIN:2; Locking: lock Crimp housing Poles 2 AT, AT04-2P, Amphenol Amphenol AT 系列 2路 电缆安装 绿色 母 电源连接器 02P AT-SERIES RECEPTACLE GRAY
AT04-2P-EC01
amphenol-sine systems
Conn Power RCP 2 POS ST Cable Mount 2 Terminal 1 Port Conn Housing RCP 2 POS Crimp ST Cable Mount CONN RCPT 2POS 14-20AWG SIZE 16 Automotive Connectors AT Series Receptacle 2 Way End Cap 2 PIN RECEPTACLE, WITH END CAP
AT62-14-0122
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 14-16AWG SZ16 NICKEL Female Contact, Stamped&Formed 14-16Awg Automotive Connectors Female Cont Stamped/ Formed 14-16 AWG Nic CONTACT, STAMP & FORMED, SKT, 14AWG FEMALE CONTACT, STAMPED & FORMED 14-16AWG, NICKEL PLATE Crimp socket 13 A Female 16...14 AWG, AT62-14-0122, Amphenol Amphenol AT 系列
AT62-210-1231
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 12-14AWG GOLD Female Cont,Machined 12-14Awg,Gold Plate Automotive Connectors Female 12-14 AWG Machined Contact CONTACT, MACHINED, SKT, 12AWG CONTACT, SOCKET, 14-12 AWG, CRIMP FEMALE CONTACT, MACHINED 12-14AWG, GOLDPLATE Amphenol AT 系列
65-54757
amphenol-sine systems
FEMALE CONTACT,DIAGNOSTICS, SIZE 16, WIRE GAGE 20 AWG CONN SOCKET 20AWG SIZE 16 Automotive Connectors Diagnostic Size 16 Female Cont. 20 AWG FEMALE CONTACT, DIAGNOSTICS, SIZE 16, WIRE GAGE 20 AWG
AT62-16-0622
amphenol-sine systems
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE 18-20AWG NICKEL PLTE Automotive Connectors Female Cont Stamped/ Formed 18-20 AWG Nic FEMALE CONTACT, STAMPED & FORMED 18-20AWG, NICKEL PLATE Amphenol AT 系列 塞孔接点, 使用于AT 系列连接器
AT62-16-0122
amphenol-sine systems
Contact SKT Crimp ST Cable Mount CONN SOCKET 16-18AWG SZ16 NICKEL Female Contact,Stamped&Formed 16-18Awg Automotive Connectors Female Cont Stamped/ Formed 16-18 AWG Nic CONTACT, SOCKET, 18-16AWG, CRIMP, FULL REEL FEMALE CONTACT, STAMPED & FORMED 16-18AWG, NICKEL PLATE Contact; Size:16; female; 0.75÷1.5mm2; AHD, AT; nickel plated; tape Crimp socket 13 A Female 18...16 AWG, AT62-16-0122, Amphenol Amphenol AT 系列 触点, 使用于AT 系列连接器 ATM FEMALE CRIMP AWG 16 NICKEL

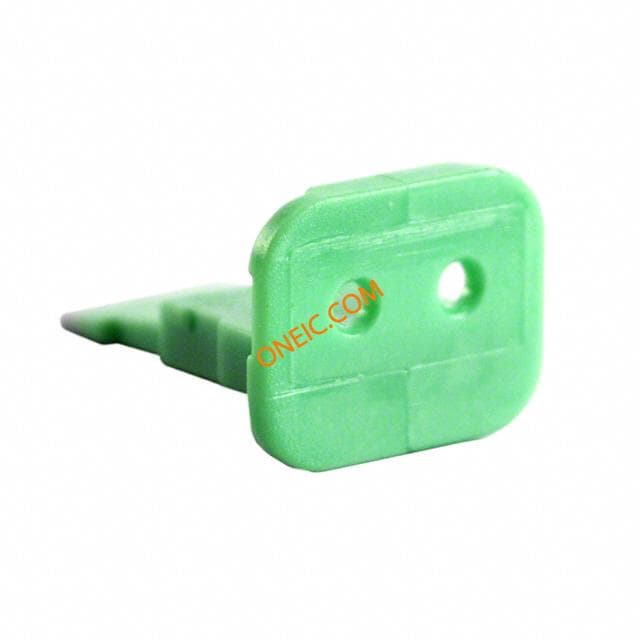

AW2S
