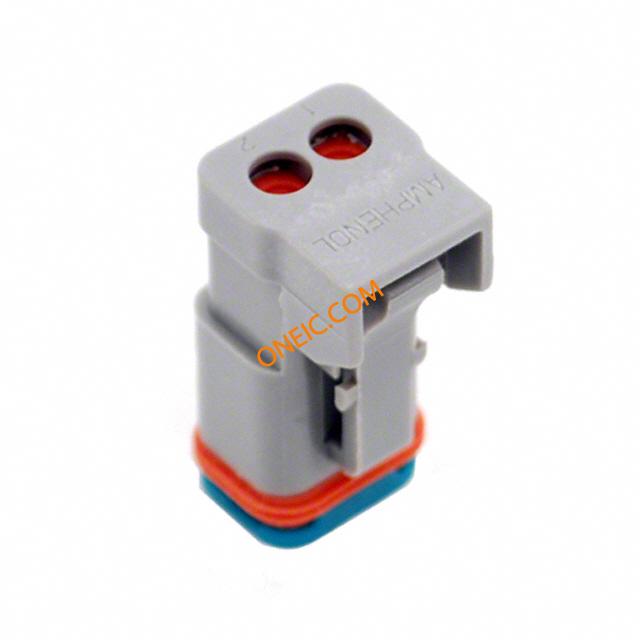

AT06-2S-EC01
| 制造商 | |
| 描述 | Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port Conn Housing PL 2 POS Crimp ST Cable Mount CONN PLUG 2POS 14-20AWG SIZE 16 Automotive Connectors Plug 2 Way End Cap 2 PIN PLUG, WITH END CAP 2PINPLUG,WITHENDCAP |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 13 A | ||
机械参数
| 颜色 | Gray | 深度 | 31.3 mm |
| 包装方式 | Bulk | 导线线规 | 14-20 AWG |
| 触头类型 | Female Socket | 外壳颜色 | Gray |
| 安装类型 | Cable Mount | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | Thermoplastic |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Power |
| 连接器性别 | PL | 系列 | AT |
| 产品特性 | Cap (Cover) | 端口数 | 1 Port |
环境参数
| 工作温度 | -55C to 125C | 结工作温度 | 125C |
