AT04-4P
| 制造商 | |
| 描述 | Conn Power RCP 4 POS ST Cable Mount 4 Terminal 1 Port Conn Housing RCP 4 POS Crimp ST Cable Mount CONN RCPT 4POS 14-20AWG SIZE 16 AT 4 Pin Receptacle Automotive Connectors AT Series Receptacle 4 Way RECEPTACLE, AT, 4 WAY, PIN 4 PIN RECEPTACLE Connector: wire-wire; AT; plug; male; PIN:4; Locking: lock Crimp housing Poles 4 AT, AT04-4P, Amphenol Amphenol 4路 电缆安装 母 电源连接器 04P AT-SERIES RECEPTACLE GRAY |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 14R5588 427-0003 |
| 产品类别 | Automotive Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366990 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 击穿电压 | :1500V | 最大额定电流 | 13 A |
| 连接器类型 - 电压输入 | for size 16 terminals | ||
机械参数
| 颜色 | Gray | 深度 | 46mm |
| 宽度 | 20.8mm | 高度 | 19.5mm |
| 重量 | 0.002 | 材料（通用） | :Thermoplastic |
| 包装方式 | Bulk | 导线线规 | 14-20 AWG |
| 触头类型 | Male Pin | 外壳颜色 | Gray |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 紧固类型 | Latch Holder | 安装样式 | Wire |
| 排数 | 2 | 锁定特性 | lock |
| 材料表面处理 | :- | 壳体材料 | Thermoplastic |
| 总长度 | 20.8 mm | 包装数量 | 600 |
| 主要材料 | Industrial | 连接器 - 电缆 | plug |
| 连接器颜色 | grey | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
产品信息
| SPG | 600 | 备注 | Contacts Not Provided |
| 类型 | Power | 连接器性别 | RCP |
| 系列 | AT | 制造商全称 | AT Series |
| 适配器系列 | AT | 端口数 | 1 Port |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | - 55 C to + 125 C | ||
文档与媒体
相关型号
A114017
amphenol-sine systems
BLANK SEAL 16AWG SEAL BLANK 16AWG Blank Seal 16Awg Automotive Connectors Blank Seal 16 AWG Connector Accessories Sealing Plug White Size 16 SEAL PIN, BLANK PIN Sealing pin; AHD, AT, ATP; male-female; Size:12,16 Sealing plug, A114017, Amphenol Amphenol AT/AHD 系列 Seal Plug, 使用于汽车连接器 01P BLANK SEAL PLUG AWG 16
AT04-4P-EC01
amphenol-sine systems
Conn Power RCP 4 POS ST Cable Mount 4 Terminal 1 Port Conn Housing RCP 4 POS Crimp ST Cable Mount CONN RCPT 4POS 14-20AWG SIZE 16 Automotive Connectors AT Series Receptacle 4 Way End Cap
AT06-4S
amphenol-sine systems
Conn Power PL 4 POS ST Cable Mount 4 Terminal 1 Port Conn Housing PL 4 POS Crimp ST Cable Mount CONN PLUG 4POS 14-20AWG SIZE 16 AT 4 Pin Plug Automotive Connectors Plug 4 Way PLUG, AT, 4 WAY, SKT 4 PIN PLUG 4PINPLUG Connector: wire-wire; AT; plug; female; PIN:4; Locking: lock Crimp housing Poles 4 AT, AT06-4S, Amphenol Amphenol 4路 电缆安装 公 电源连接器 04P AT-SERIES PIN PLUG GRAY
AT60-14-0122
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONN PIN 14-16AWG SIZE 16 NICKEL Male Contact,Stamped & Formed 14-16Awg Automotive Connectors Male Cont Stamped/ Formed 14-16 AWG Nic CONTACT, STAMP & FORMED, PIN, 14AWG MALE CONTACT, STAMPED & FORMED 14-16AWG, NICKEL PLATE Crimp pin 13 A Male 16...14 AWG, AT60-14-0122, Amphenol Amphenol AT 系列
AT60-16-0122
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONN PIN 16-18AWG SIZE 16 NICKEL Male Contact,Stamped&Formed 16-18Awg Automotive Connectors Male Cont Stamped/ Formed 16-18 AWG Nic CONTACT, PIN, 18-16 AWG, CRIMP CONTACT, PIN, 18-16AWG, CRIMP, FULL REEL MALE CONTACT, STAMPED & FORMED 16-18AWG, NICKEL PLATE Contact; Size:16; male; 0.75÷1.5mm2; AHD, AT; nickel plated; tape Crimp pin 13 A Male 18...16 AWG, AT60-16-0122, Amphenol Amphenol AT 系列 ATM MALE CRIMP AWG 16 NICKEL
AT60-220-1231
amphenol-sine systems
Contact PIN Crimp ST Cable Mount CONN PIN 12-14AWG GOLD Male Contact,Machined 12-14Awg,Au Plate Automotive Connectors Male Cont Machined Formed 12-14 AWG CONTACT, MACHINED, PIN, 12AWG CONTACT, PIN, 14-12 AWG, CRIMP MALE CONTACT, MACHINED 12-14AWG, GOLD PLATE Amphenol AT 系列

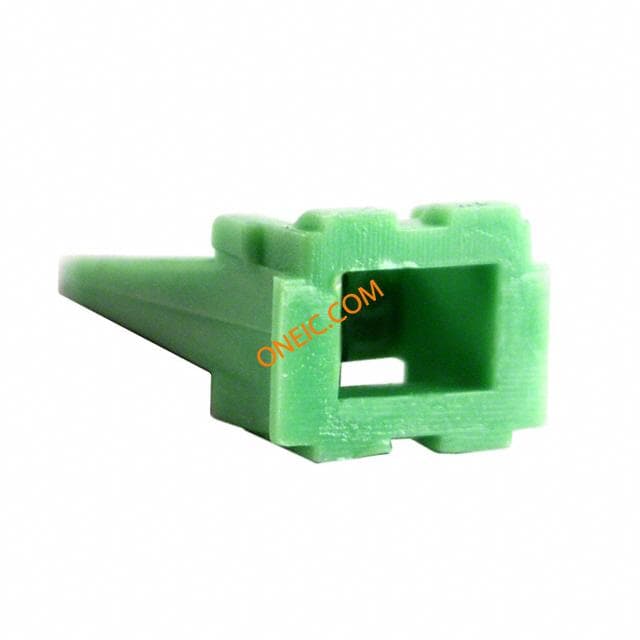

AW4P
