点击放大查看

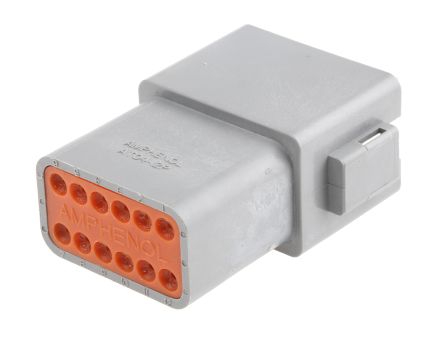

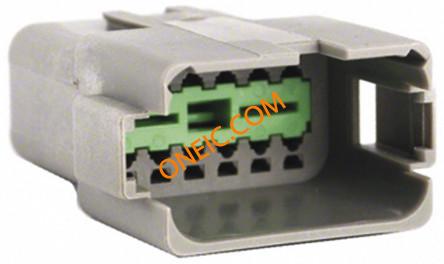

AT04-12PA
| 制造商 | |
| 描述 | Conn Power RCP 12 POS ST Cable Mount 12 Terminal 1 Port Automotive Connectors AT Recpt 12 Way Enhanced A Key Conn Housing RCP 12 POS Crimp ST Cable Mount CONN RCPT 12POS 14-20AWG SIZE 16 AT 12 Pin Receptacle Key wayition A RECEPTACLE, AT, 12 WAY, PIN 12 PIN RECEPTACLE KEY POSITION A Connector: wire-wire; AT; plug; male; PIN:12; Locking: lock Crimp housing Poles 12 AT, AT04-12PA, Amphenol Amphenol 12路 电缆安装 母 电源连接器 12P AT RECEPTACLE KEY A GRAY |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | 889-1008 |
| 零件号别名 | 14R5582 427-0009 | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366990 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 击穿电压 | :1500V | 最大额定电流 | 13 A |
| 连接器类型 - 电压输入 | for size 16 terminals | ||
机械参数
| 颜色 | Gray | 深度 | 50.5mm |
| 宽度 | 40.45mm | 高度 | 22.2mm |
| 重量 | 0.003 | 材料（通用） | :Thermoplastic |
| 包装方式 | Bulk | 导线线规 | 14-20 AWG |
| 触头类型 | Receptacle | 外壳颜色 | Gray |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 紧固类型 | Latch Holder | 安装样式 | Wire |
| 排数 | 2 | 锁定特性 | lock |
| 材料表面处理 | :- | 壳体材料 | Thermoplastic |
| 总长度 | 40.45 mm | 包装数量 | 220 |
| 主要材料 | Industrial | 连接器 - 电缆 | plug |
| 连接器颜色 | grey | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
产品信息
| SPG | 220 | 备注 | Contacts Not Provided |
| 类型 | Power | 连接器性别 | RCP |
| 系列 | AT | 极性 | A |
| 制造商全称 | AT Series | 适配器系列 | AT |
| 端口数 | 1 Port | 单元数量 | 1 |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
