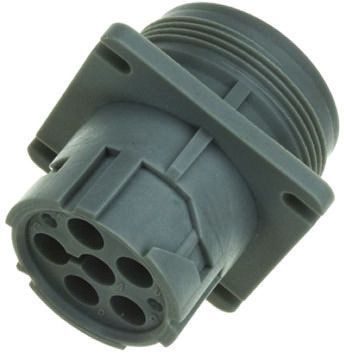

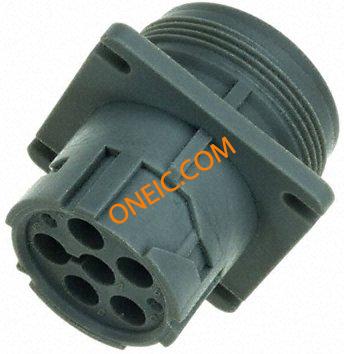

AHD10-6-12P
| 制造商 | |
| 描述 | Automotive Connectors HD Series 6 Pin Receptacle HD SERIES 6 PIN RECEPTACLE CONN RCPT 6POS W/FLANGE 6 Pole Female Straight MIL Spec Circular Connector with Male Contacts AHD Series, Quick Connect Automotive Connectors HD Series 6 pin Recp (w/ SLOT) AHD10-6-12P Amphenol AHD 系列 6路 直向 连接器 插座 , 公触点, 快速连接接合 |
| 分类 |
商业参数
| 零件号别名 | 427-0055 | 产品类别 | Automotive Connectors |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 触点尺寸 | 12 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 连接器用途 | Quick Connect | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 主要材料 | Sealed |
| 第一触头极性 | Male | 触点数 | 6 |
| 位数 | 6 | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | AHD | 制造商全称 | AHD Series |
环境参数
| 密封等级 | IP 67 | 工作温度 | +125°C |
文档与媒体
