点击放大查看

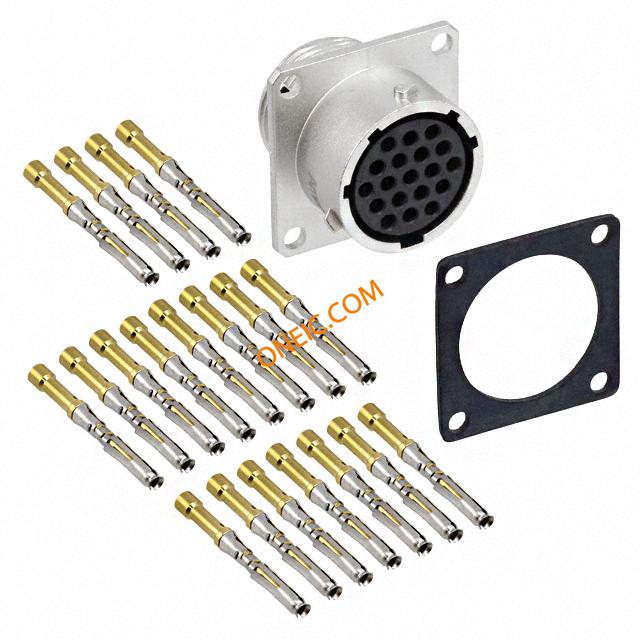

RT0W01419SNH-K
| 制造商 | |
| 描述 | CONN RCPT 19POS WALL MT SKT KIT Standard Circular Connector Wall Mtg Recpt Sckt 20Awg 19 Pin |
| 分类 |
商业参数
| 其他名称 | 889-1308 | 标准包装数量 | 5 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 150VAC/DC | 最大额定电流 | 7.5A |
机械参数
| 包装方式 | Bulk | 导线线规 | 20 |
| 方向 | N (Normal) | 外壳样式 | Wall Mount |
| 端接方式 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | Receptacle |
| 第一触头极性 | Socket | 触点数 | 19 |
| 位数 | 19 | 外壳尺寸-插件 | 14-19 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 接触镀层厚度 | Flash |
产品信息
| 产品子类型 | Connector Kits | ||
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
相关型号
CA-4020-59
Amphenol Sine Systems Corp
CONN PLUG SEALING 20AWG Standard Circular Connector Sealing Plug 20AWG SEALING PLUG, RT360, 20AWG Connector accessories: sealing pin; Series: RT360; Size:20 Sealing plug, CA-4020-59, Amphenol RT SEALING PLUG 20
RTFD14B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 14 Standard Circular Connector Panel Gasket Shell Size 14 GASKET, PANEL, RT360, SIZE 14 Connector accessories: socket gasket; Series: RT360 Panel gasket 14, RTFD14B, Amphenol RT PANEL GASKET SHELL 14
RT014DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 14 Standard Circular Connector Recptle Dust Cap Shell Size 18 DUST CAP, RT360 RECEPT, SIZE 14 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 14, RT014DCG, Amphenol

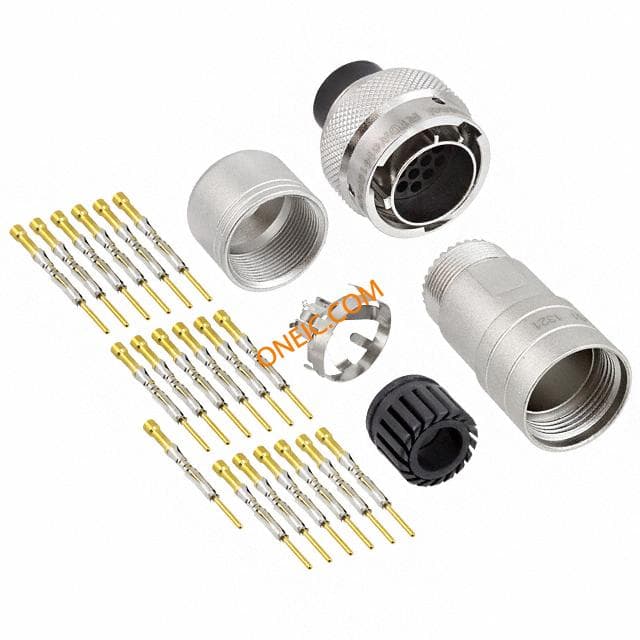

RT0W61419PNH-K
Amphenol Sine Systems Corp
CONN PLUG 19POS CABLE PIN KIT Standard Circular Connector Plug Pin 20Awg 19 Pin CONN PLUG 19POS INLINE PIN KIT
MS20W23F-10
Amphenol Sine Systems Corp
20AWG SOCKET CONTACT 10/BAG Standard Circular Contacts 20Awg Socket Contact 10 Piece Bag
