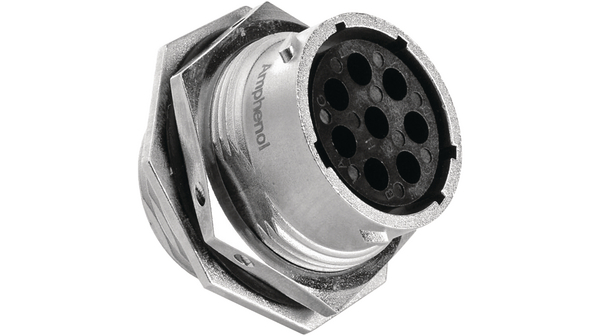

RT0718-8SNH
| 制造商 | |
| 描述 | CONN HSG RCPT 8POS JAM NUT SKTS RECEPT, JAM NUT, SIZE 18, 8WAY, SKT Jam nut receptacle RT360 Poles=8 Female Housing size18, RT0718-8SNH, Amphenol |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 50 | ||
合规参数
| 海关税号 | 85369010 | ||
机械参数
| 重量 | 0.06 | 包装方式 | Bulk |
| 方向 | N (Normal) | 触点尺寸 | 2.5mm |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Bulkhead - Front Side Nut |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Bayonet Lock |
| 插入角度 | :18-8 | 本体材料 | :Zinc Alloy |
| 第一触头极性 | :Socket | 位数 | 8 |
| 外壳尺寸-插件 | 18-8 | 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Socket |
| 系列 | :RT360 | ||
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | ||
