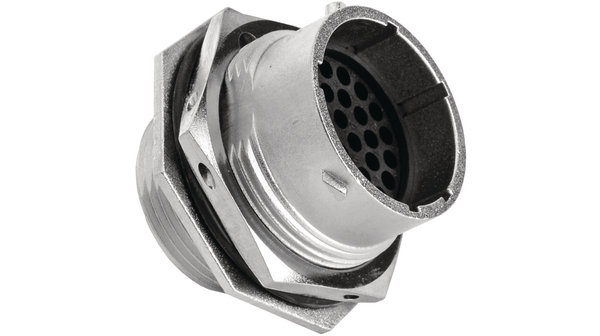

RT0718-32PNH

制造商	Amphenol Corporation
描述	CONN HSG RCPT 32POS JAM NUT PINS Jam nut receptacle RT360 Poles=32 Male Housing size18, RT0718-32PNH, Amphenol

对参数有疑问？问 AI 助手

商业参数

标准包装数量

电气参数

额定电压	150	极数	32
最大额定电流	5 A	保护电压（VP）（2416）	IP 67

机械参数

包装方式	Bulk	外壳尺寸	18
方向	N (Normal)	触点尺寸	20
触头类型	Crimp	安装类型	Panel Mount, Bulkhead - Front Side Nut
连接器类型	Receptacle for Male Contacts	紧固类型	Bayonet Lock
锁定特性	Bayonet locking	壳体材料	Zinc Alloy
触点数	Size 20	位数	32
外壳尺寸-插件	18-32	第一连接器极性	Male
外壳材料及表面处理	Zinc Die Cast, Nickel Plated

产品信息

备注

Contacts Not Provided

系列

RT360

环境参数

防护等级

IP67/68 - Dust Tight, Waterproof

工作温度

-40...+105 °C
