点击放大查看

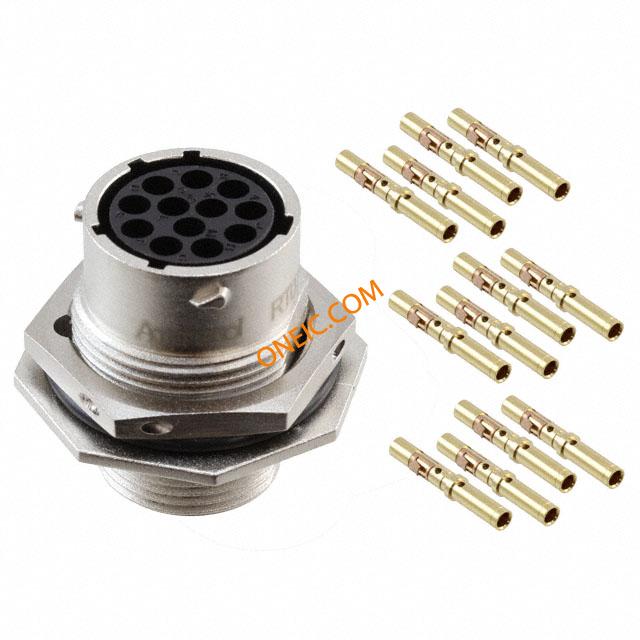

RT071412SNH-K
| 制造商 | |
| 描述 | CONN RCPT 12POS JAM NUT SKT KIT Standard Circular Connector Jam Nut Recpt Socket 16Awg 12 pin |
| 分类 |
商业参数
| 其他名称 | 889-1298 | 标准包装数量 | 5 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 300VAC/DC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Jam Nut |
| 端接方式 | Crimp | 安装类型 | Panel Mount, Bulkhead - Front Side Nut |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | Receptacle |
| 第一触头极性 | Socket | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | 14-12 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 接触镀层厚度 | Flash |
产品信息
| 产品子类型 | Connector Kits | ||
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
