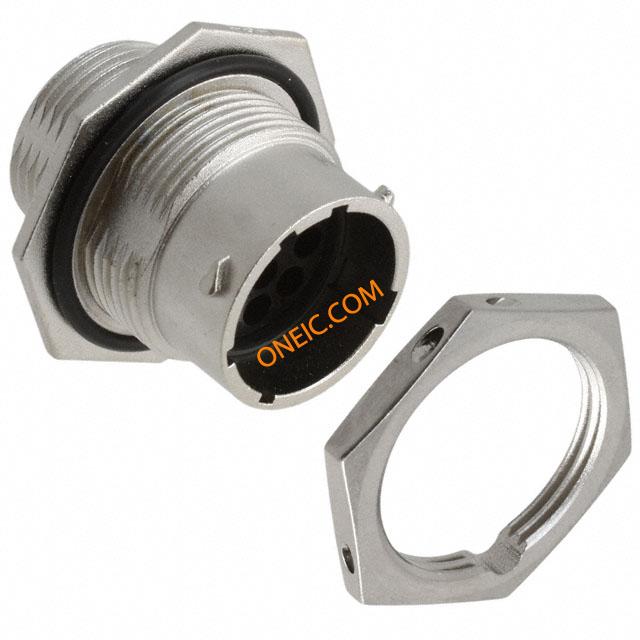

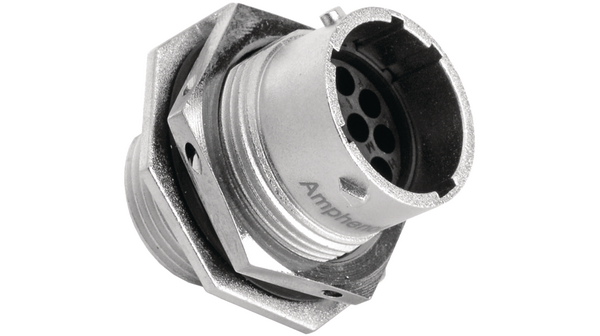

RT0714-12PNH

制造商	Amphenol Corporation
描述	CONN HSG RCPT 12POS JAM NUT PINS RECEPT, JAM NUT, SIZE 14, 12WAY,PIN Conn; Circular; Receptacla; Jam Nut; 12Pin; Male; 16 AWG; RT360 Series Connector: circular; male; Series: RT360; Case: size 14; socket Jam nut receptacle RT360 Poles=12 Male Housing size14, RT0714-12PNH, Amphenol
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

标准

UL E63093

海关税号

85369010

电气参数

连接器类型 - 电压输入

for size 16 terminals

机械参数

重量	0.045	包装方式	Bulk
方向	N (Normal)	触点尺寸	16
触头类型	Crimp	基体材料	aluminium, zinc
安装类型	Panel Mount, Bulkhead - Front Side Nut	连接器类型	Receptacle for Male Contacts
紧固类型	Bayonet Lock	安装样式	for panel mounting, front side nut
封装形式	size 14	壳体镀层	nickel
插入角度	:14-12	锁定特性	external bayonet
本体材料	:Zinc Alloy	包装数量	25
连接器 - 电缆	socket	第一触头极性	:Pin
位数	12	外壳尺寸-插件	14-12
外壳材料及表面处理	Zinc Die Cast, Nickel Plated	第一连接器安装类型	:Panel

产品信息

SPG	25	备注	Contacts Not Provided
连接器性别	:Socket	系列	:RT360
适配器系列	RT360	单元数量	25

环境参数

防护等级

IP67/68 - Dust Tight, Waterproof

工作温度

-40...105°C
