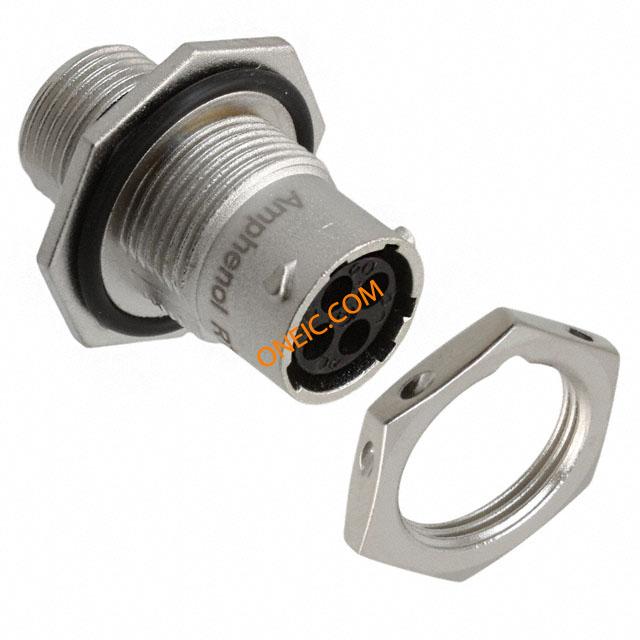

RT0710-4SNH
| 制造商 | |
| 描述 | CONN HSG RCPT 4POS JAM NUT SKTS RECEPT, JAM NUT, SIZE 10, 4WAY, SKT Conn; Circular; Receptacla; Jam Nut; 4 Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 10; socket |
| 分类 |
商业参数
| 标准包装数量 | 50 | ||
合规参数
| 标准 | UL E63093 | 海关税号 | 85369010 |
电气参数
| 连接器类型 - 电压输入 | for size 16 terminals | ||
机械参数
| 重量 | 0.025 | 包装方式 | Bulk |
| 方向 | N (Normal) | 触点尺寸 | 16 |
| 触头类型 | Crimp | 基体材料 | aluminium, zinc |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | for panel mounting, front side nut |
| 封装形式 | size 10 | 壳体镀层 | nickel |
| 插入角度 | :10-4 | 锁定特性 | external bayonet |
| 本体材料 | :Zinc Alloy | 包装数量 | 25 |
| 连接器 - 电缆 | socket | 第一触头极性 | :Socket |
| 位数 | 4 | 外壳尺寸-插件 | 10-4 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 连接器性别 | :Socket | 系列 | :RT360 |
| 适配器系列 | RT360 | 单元数量 | 1 |
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40...105°C |
相关型号
CA-4016-59
Amphenol Sine Systems Corp
CONN PLUG SEALING 16AWG Standard Circular Connector Sealing Plug 12AWG SEALING PLUG, RT360, 16AWG Connector accessories: sealing pin; Series: RT360; Size:16
RT010DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 10 Standard Circular Connector Recptle Dust Cap Shell Size 18 DUST CAP, RT360 RECEPT, SIZE 10 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 10, RT010DCG, Amphenol

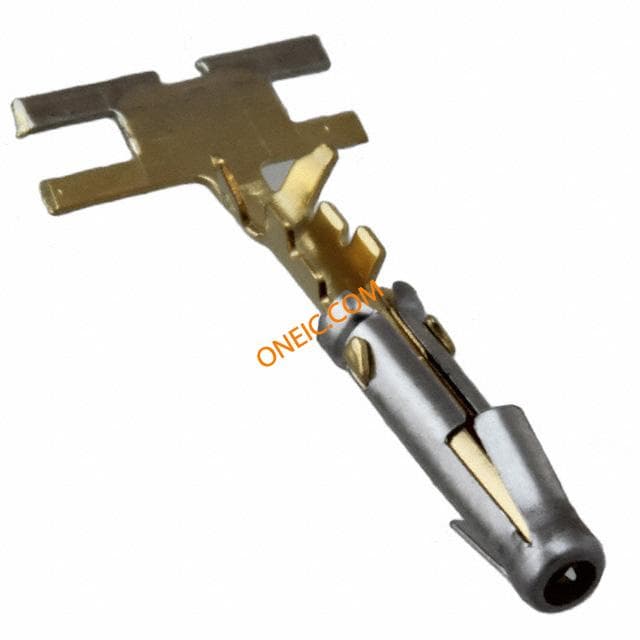

SS20M1F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 20-22AWG GOLD Standard Circular Contacts Skt 3K Gold Flash Wire Range 20-22 CONTACT, SKT, S&F, SIZE 16, 20-22AWG Contact; Socket; Stamped, ; 3K Reel, Gold Flash; 22-20 AWG; RT360 Series Contact; Size:16; female; 20÷22AWG; RT360; gold plated; crimped RT SOCKET GOLD WIRE RANGE 20-22

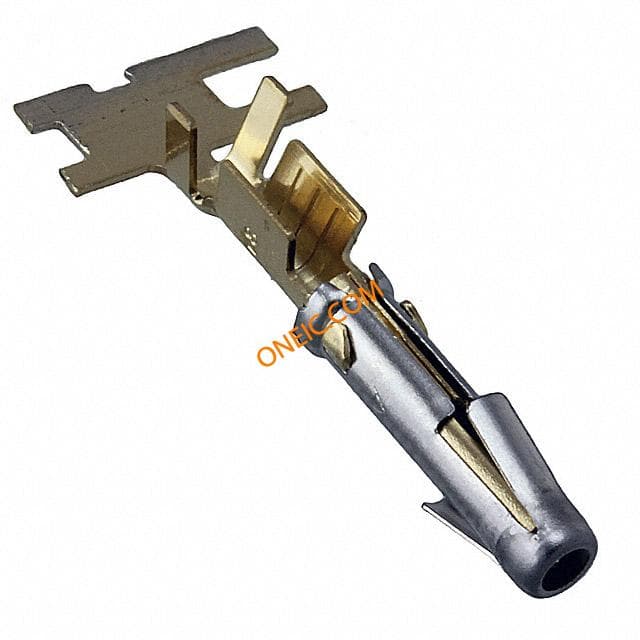

SS16M1F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 16-18AWG GOLD Standard Circular Contacts Skt 3K Gold Flash Wire Range 16-18 CONTACT, SKT, S&F, SIZE 16, 16-18AWG Contact; Socket; Stamped; 3K Reel, GoldFlash; 18-16 AWG; RT360 Series Contact; Size:16; female; 16÷18AWG; RT360; gold plated; crimped
SS24M1F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 24-26AWG GOLD Standard Circular Contacts Skt 3K Gold Flash Wire Range 24-26 CONTACT, SKT, S&F, SIZE 16, 24-26AWG Contact; Socket; Stamped; 3K Reel; GoldFlash; 26-24 AWG; RT360 Series Contact; Size:16; female; 24÷26AWG; RT360; gold plated; crimped Crimp socket, SS24M1F, Amphenol
SS14M1F
Amphenol Sine Systems Corp
CONTACT SKT CRIMP 14AWG GOLD Standard Circular Contacts Skt 3K Gold Flash Wire Range 14 CONTACT, SKT, S&F, SIZE 16, 14AWG Contact; Socket; Stamped; 3K Reel; GoldFlash; 14 AWG; RT360 Series Contact; Size:16; female; 14AWG; RT360; gold plated; crimped; tape Crimp socket, SS14M1F, Amphenol

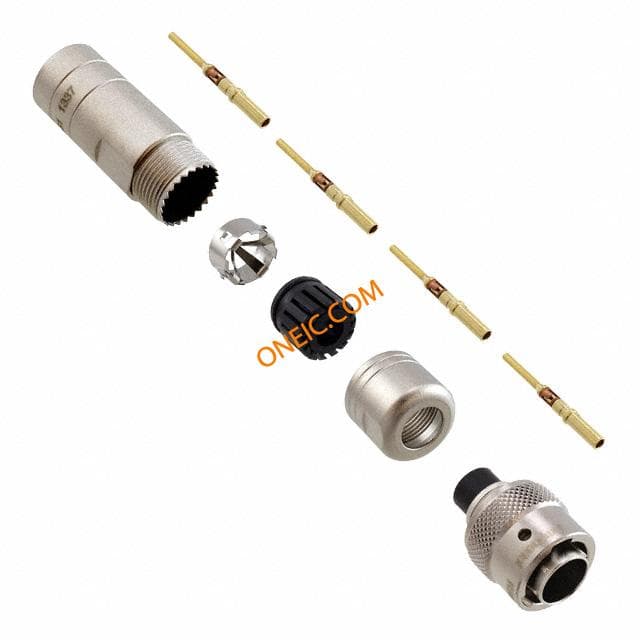

RT06104PNH-K
