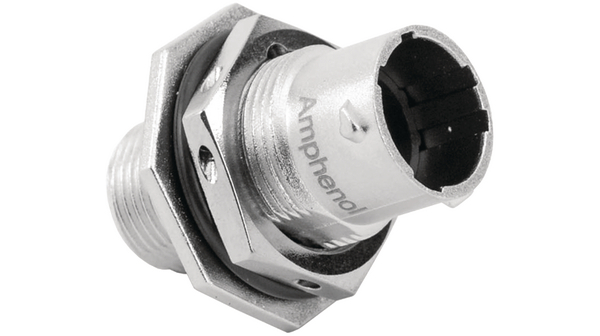

RT0710-2PNH

制造商	Amphenol Corporation
描述	CONN HSG RCPT 4POS JAM NUT PINS RECEPT JAM NT SIZE 10, 4WAY VDE, PIN Jam nut receptacle RT360 Poles=2 x 2 Male Housing size10, RT0710-2PNH, Amphenol
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

海关税号

85369010

机械参数

重量	0.025	包装方式	Bulk
方向	N (Normal)	触点尺寸	16 (2), 20 (2)
触头类型	Crimp	安装类型	Panel Mount, Bulkhead - Front Side Nut
连接器类型	Receptacle for Male Contacts	紧固类型	Bayonet Lock
插入角度	:10-2	本体材料	:Zinc Alloy
第一触头极性	:Pin	位数	4
外壳尺寸-插件	10-2	外壳材料及表面处理	Zinc Die Cast, Nickel Plated
第一连接器安装类型	:Panel

产品信息

备注	Contacts Not Provided	连接器性别	:Socket
系列	:RT360

环境参数

防护等级

IP67/68 - Dust Tight, Waterproof

相关型号

RT010DCG

Amphenol Sine Systems Corp

CONN RCPT DUST CAP SIZE 10 Standard Circular Connector Recptle Dust Cap Shell Size 18 DUST CAP, RT360 RECEPT, SIZE 10 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 10, RT010DCG, Amphenol

¥45.5600

详情

SP20M1F

Amphenol Sine Systems Corp

CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 20-22 CONTACT, PIN, SIZE 16, 22-20 AWG, CRIMP Contact; Pin; Stamped; 3K Reel; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:16; male; 20÷22AWG; RT360; gold plated; crimped; tape Crimp pin, SP20M1F, Amphenol RT PIN 3K GOLD WIRE 20-22

¥2.5160

详情

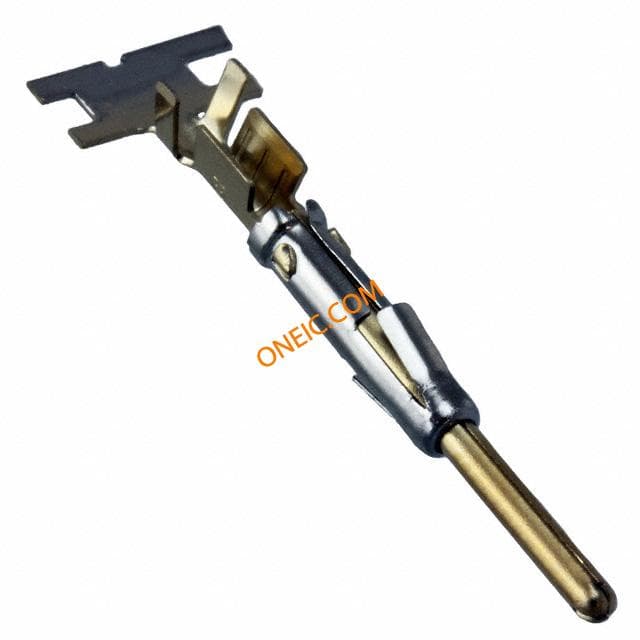

SP16M1F
