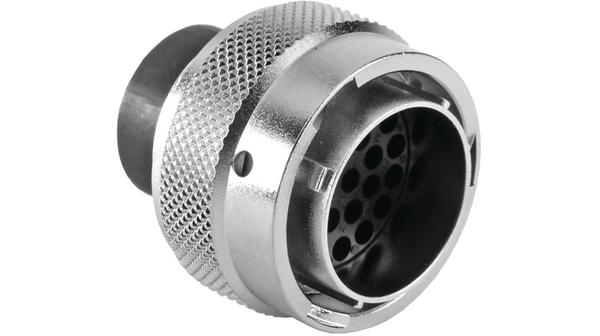

RT0616-26PNH

制造商	Amphenol Corporation
描述	CONN HSG PLUG 26POS CABLE PINS CONN HSG PLUG 26POS INLINE PINS Cable plug RT360 Poles=26 Male Housing size16, RT0616-26PNH, Amphenol
分类	连接器解决方案圆形连接器军用圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压	150	极数	26
最大额定电流	5 A	保护电压（VP）（2416）	IP 67

机械参数

包装方式	Bulk	外壳尺寸	16
方向	N (Normal)	触点尺寸	20
触头类型	Crimp	安装类型	Free Hanging (In-Line)
连接器类型	Plug for Male Contacts	紧固类型	Bayonet Lock
连接器样式	straight	锁定特性	Bayonet locking
壳体材料	Zinc Alloy	触点数	Size 20
位数	26	外壳尺寸-插件	16-26
第一连接器极性	Male	外壳材料及表面处理	Zinc Die Cast, Nickel Plated

产品信息

备注

Contacts Not Provided

系列

RT360

环境参数

防护等级

IP67/68 - Dust Tight, Waterproof

工作温度

-40...+105 °C
