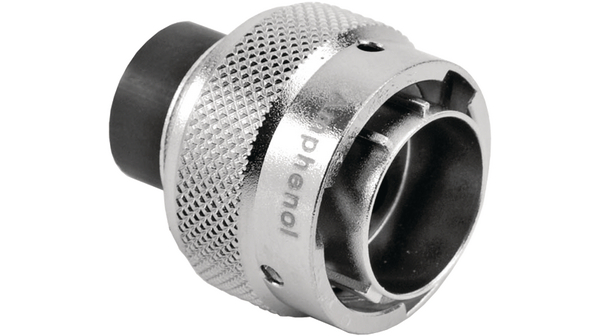

RT0614-4PNH
| 制造商 | |
| 描述 | CONN HSG PLUG 4POS CABLE PINS PLUG, SIZE 14, 4WAY, PIN, IP67 CONN HSG PLUG 4POS INLINE PINS Cable plug RT360 Poles=4 Male Housing size14, RT0614-4PNH, Amphenol |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 重量 | 0.03 | 包装方式 | Bulk |
| 方向 | N (Normal) | 触点尺寸 | 2.5mm |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Bayonet Lock |
| 插入角度 | :14-4 | 本体材料 | :Zinc Alloy |
| 第一触头极性 | :Pin | 位数 | 4 |
| 外壳尺寸-插件 | 14-4 | 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Plug |
| 系列 | :RT360 | ||
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | ||
