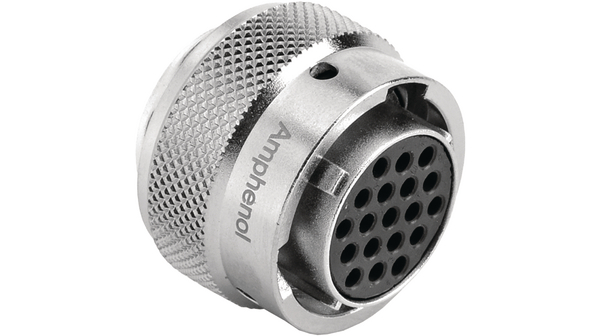

RT0614-19SNH
| 制造商 | |
| 描述 | CONN HSG PLUG 19POS CABLE SKTS CONN HSG PLUG 19POS INLINE SKTS Cable plug RT360 Poles=19 Female Housing size14, RT0614-19SNH, Amphenol |
| 分类 |
商业参数
| 标准包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 150 | 极数 | 19 |
| 最大额定电流 | 5 A | 保护电压（VP）（2416） | IP 67 |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 14 |
| 方向 | N (Normal) | 触点尺寸 | 20 |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 连接器样式 | straight | 锁定特性 | Bayonet locking |
| 壳体材料 | Zinc Alloy | 触点数 | Size 20 |
| 位数 | 19 | 外壳尺寸-插件 | 14-19 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated |
产品信息
| 备注 | Contacts Not Provided | 系列 | RT360 |
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40...+105 °C |
