点击放大查看

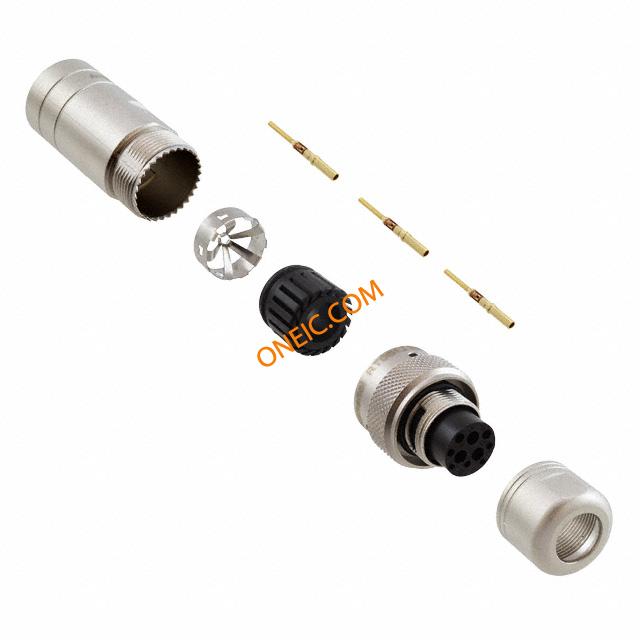

RT06123PNH-K
| 制造商 | |
| 描述 | CONN PLUG 3POS CABLE PIN KIT Standard Circular Connector Plug Pin 16Awg 3 pin CONN PLUG 3POS INLINE PIN KIT |
| 分类 |
商业参数
| 其他名称 | 889-1281 | 标准包装数量 | 5 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 300VAC/DC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Plug |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | Plug |
| 第一触头极性 | Pin | 触点数 | 3 |
| 位数 | 3 | 外壳尺寸-插件 | 12-3 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 接触镀层厚度 | Flash |
产品信息
| 产品子类型 | Connector Kits | ||
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
相关型号
RT0012-3SNH
Amphenol Sine Systems Corp
CONN HSG RCPT 3POS WALL MT SKTS RECEPTACLE,PANEL,SIZE 12, 3WAY, SKT Conn; Circular; Receptacla; Box Mount; 3 Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 12; socket Square flange receptacle RT360 Poles=3 Female Housing size12, RT0012-3SNH, Amphenol
RT0712-3SNH
Amphenol Sine Systems Corp
CONN HSG RCPT 3POS JAM NUT SKTS RECEPT, JAM NUT, SIZE 12, 3WAY, SKT Conn; Circular; Receptacla; Jam Nut; 3 Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 12; socket Jam nut receptacle RT360 Poles=3 Female Housing size12, RT0712-3SNH, Amphenol
RT00123SNH-K
Amphenol Sine Systems Corp
CONN RCPT 3POS WALL MT SKTS KIT Standard Circular Connector Wall Mtg Recpt Sckt 16Awg 3 pin
RT07123SNH-K
Amphenol Sine Systems Corp
CONN RCPT 3POS JAM NUT SKT KIT Standard Circular Connector Jam Nut Recpt Socket 16Awg 3 pin
MP16M23F-10
Amphenol Sine Systems Corp
16AWG PIN CONTACT 10/BAG Standard Circular Contacts 16Awg Pin Contact 10 Piece Bag
