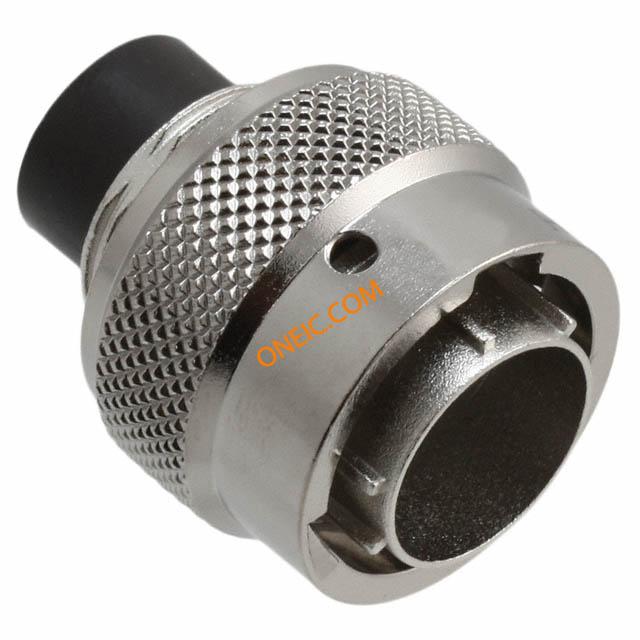

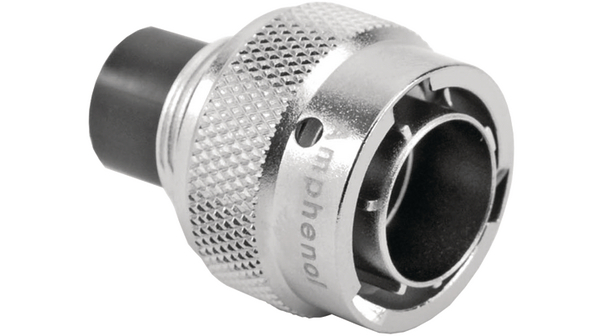

RT0612-3PNH
| 制造商 | |
| 描述 | CONN HSG PLUG 3POS CABLE PINS PLUG, SIZE 12, 3WAY, PIN, IP67 Conn; Circular; Plug; 3 Pin; Male; 16 AWG; RT360 Series Connector: circular; male; Series: RT360; Case: size 12; plug; IP67 Cable plug RT360 Poles=3 Male Housing size12, RT0612-3PNH, Amphenol |
| 分类 |
商业参数
| 标准包装数量 | 50 | ||
合规参数
| 标准 | UL E63093 | 海关税号 | 85369010 |
电气参数
| 连接器类型 - 电压输入 | for size 16 terminals | ||
机械参数
| 重量 | 0.02 | 包装方式 | Bulk |
| 方向 | N (Normal) | 触点尺寸 | 16 |
| 触头类型 | Crimp | 基体材料 | aluminium, zinc |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | for cable |
| 封装形式 | size 12 | 壳体镀层 | nickel |
| 插入角度 | :12-3 | 锁定特性 | internal bayonet |
| 本体材料 | :Zinc Alloy | 包装数量 | 25 |
| 连接器 - 电缆 | plug | 第一触头极性 | :Pin |
| 位数 | 3 | 外壳尺寸-插件 | 12-3 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 连接器性别 | :Plug | 系列 | :RT360 |
| 适配器系列 | RT360 | 单元数量 | 1 |
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40...105°C |
相关型号
SP20M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 20-22 CONTACT, PIN, SIZE 16, 22-20 AWG, CRIMP Contact; Pin; Stamped; 3K Reel; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:16; male; 20÷22AWG; RT360; gold plated; crimped; tape Crimp pin, SP20M1F, Amphenol RT PIN 3K GOLD WIRE 20-22
SP16M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 16-18AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 16-18 CONTACT, PIN, S&F, SIZE 16, 16-18AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 18-16 AWG; RT360 Series Contact; Size:16; male; 16÷18AWG; RT360; gold plated; crimped; tape
SP24M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 24-26AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 24-26 CONTACT, PIN, S&F, SIZE 16, 24-26AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 26-24 AWG; RT360 Series Contact; Size:16; male; 24÷26AWG; RT360; gold plated; crimped; tape Crimp pin, SP24M1F, Amphenol
SP14M1F
Amphenol Sine Systems Corp
CONT PIN CRIMP 14AWG GOLD SZ 16 Standard Circular Contacts Pin 3K Gold Flash Wire Range 14 CONTACT, PIN, S&F, SIZE 16, 14AWG Contact; Pin; Stamped, ; 3K Reel; Gold Flash; 14 AWG; RT360 Series Contact; Size:16; male; 14AWG; RT360; gold plated; crimped; tape Crimp pin, SP14M1F, Amphenol

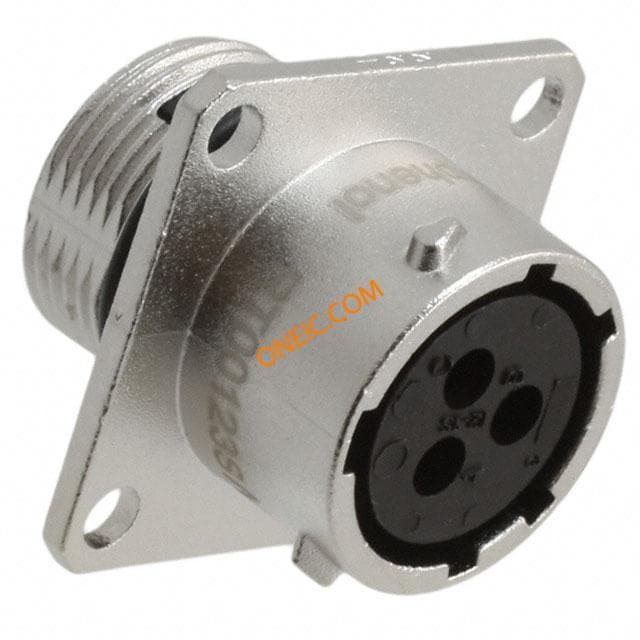

RT0012-3SNH
Amphenol Sine Systems Corp
CONN HSG RCPT 3POS WALL MT SKTS RECEPTACLE,PANEL,SIZE 12, 3WAY, SKT Conn; Circular; Receptacla; Box Mount; 3 Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 12; socket Square flange receptacle RT360 Poles=3 Female Housing size12, RT0012-3SNH, Amphenol

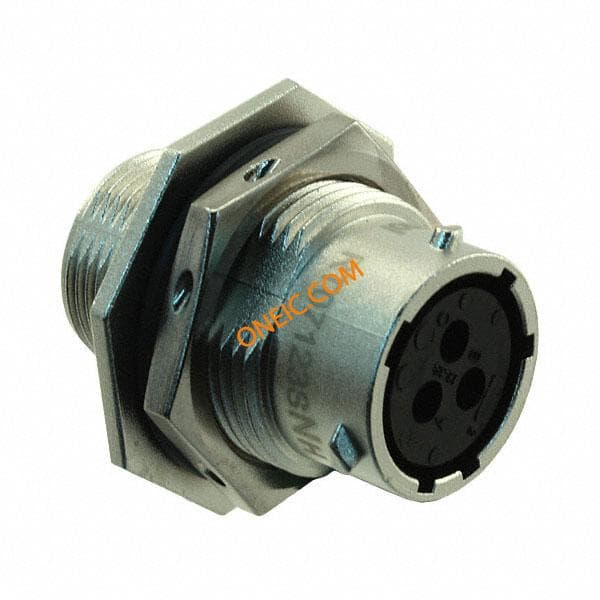

RT0712-3SNH
Amphenol Sine Systems Corp
CONN HSG RCPT 3POS JAM NUT SKTS RECEPT, JAM NUT, SIZE 12, 3WAY, SKT Conn; Circular; Receptacla; Jam Nut; 3 Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 12; socket Jam nut receptacle RT360 Poles=3 Female Housing size12, RT0712-3SNH, Amphenol

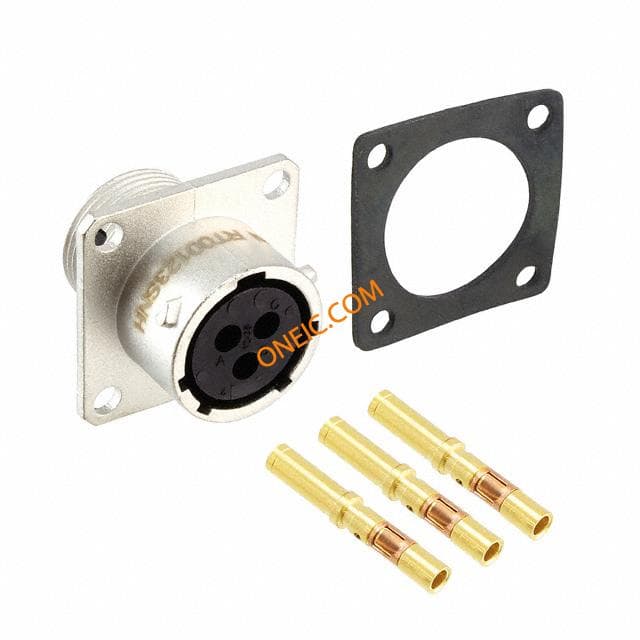

RT00123SNH-K
Amphenol Sine Systems Corp
CONN RCPT 3POS WALL MT SKTS KIT Standard Circular Connector Wall Mtg Recpt Sckt 16Awg 3 pin

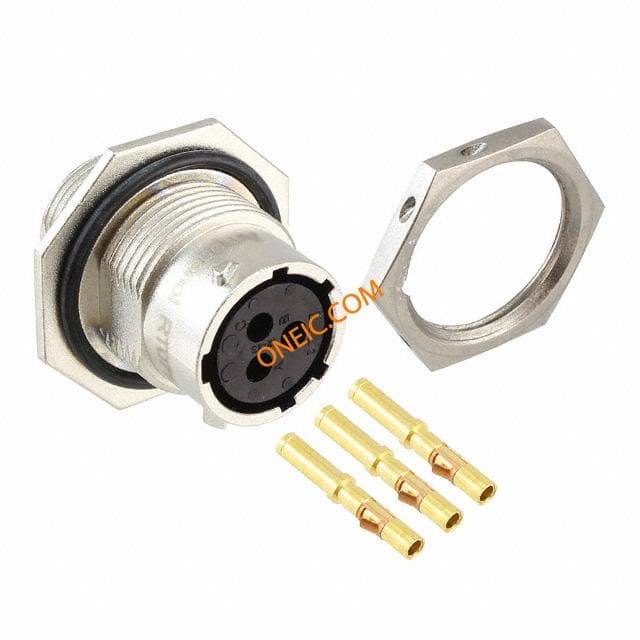

RT07123SNH-K
