点击放大查看

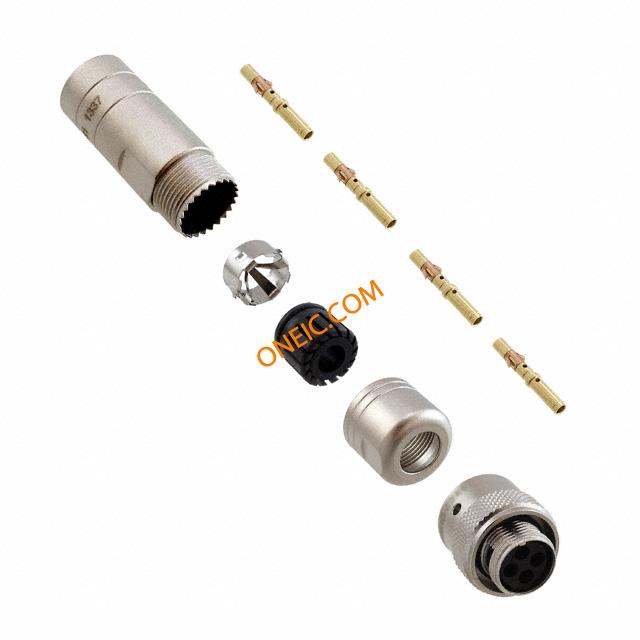

RT06104SNH-K
| 制造商 | |
| 描述 | CONN PLUG 4POS CABLE SKT KIT Standard Circular Connector Plug Socket 16Awg 4 pin CONN PLUG 4POS INLINE SKT KIT |
| 分类 |
商业参数
| 其他名称 | 889-1280 | 标准包装数量 | 5 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 300VAC/DC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Plug |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | Plug |
| 第一触头极性 | Socket | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | 10-4 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 接触镀层厚度 | Flash |
产品信息
| 产品子类型 | Connector Kits | ||
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
相关型号
CA-4016-59
Amphenol Sine Systems Corp
CONN PLUG SEALING 16AWG Standard Circular Connector Sealing Plug 12AWG SEALING PLUG, RT360, 16AWG Connector accessories: sealing pin; Series: RT360; Size:16
RT0010-4PNH
Amphenol Sine Systems Corp
CONN HSG RCPT 4POS WALL MT PINS RECEPTACLE,PANEL,SIZE 10, 4WAY, PIN Conn; Circular; Receptacle; Box Mount; 4 Pin; Male; 16 AWG; RT360 Series Connector: circular; male; Series: RT360; Case: size 10; socket Square flange receptacle RT360 Poles=4 Male Housing size10, RT0010-4PNH, Amphenol
RT00104PNH-K
Amphenol Sine Systems Corp
CONN RCPT 4POS WALL MT PIN KIT Standard Circular Connector Wall Mtg Recpt Pin 16Awg 4 pin
RT07104PNH-K
Amphenol Sine Systems Corp
CONN RCPT 4POS JAM NUT PIN KIT Standard Circular Connector Jam Nut Recpt Pin 16Awg 4 pin

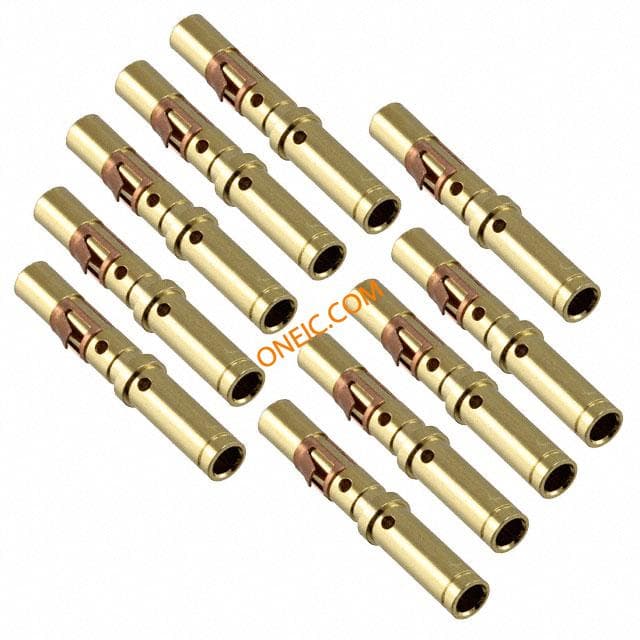

MS16M23S-10
