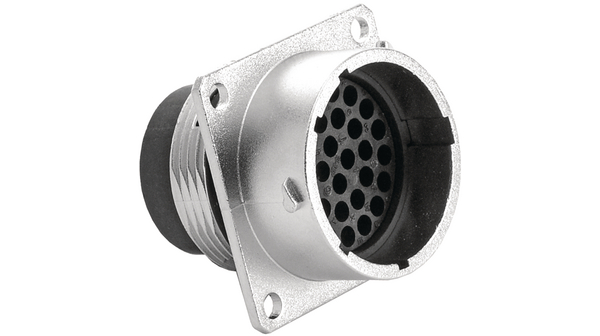

RT0018-32PNH

制造商	Amphenol Corporation
描述	CONN HSG RCPT 32POS WALL MT PIN RECEPTACLE,PANEL,SIZE 18, 32WAY, PIN Square flange receptacle RT360 Poles=32 Male Housing size18, RT0018-32PNH, Amphenol
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

海关税号

85369010

机械参数

重量	0.035	包装方式	Bulk
方向	N (Normal)	触点尺寸	20
触头类型	Crimp	安装类型	Panel Mount, Flange
连接器类型	Receptacle for Male Contacts	紧固类型	Bayonet Lock
插入角度	:18-32	本体材料	:Zinc Alloy
第一触头极性	:Pin	位数	32
外壳尺寸-插件	18-32	外壳材料及表面处理	Zinc Die Cast, Nickel Plated
第一连接器安装类型	:Panel

产品信息

备注	Contacts Not Provided	连接器性别	:Socket
系列	:RT360

环境参数

防护等级

IP67/68 - Dust Tight, Waterproof

相关型号

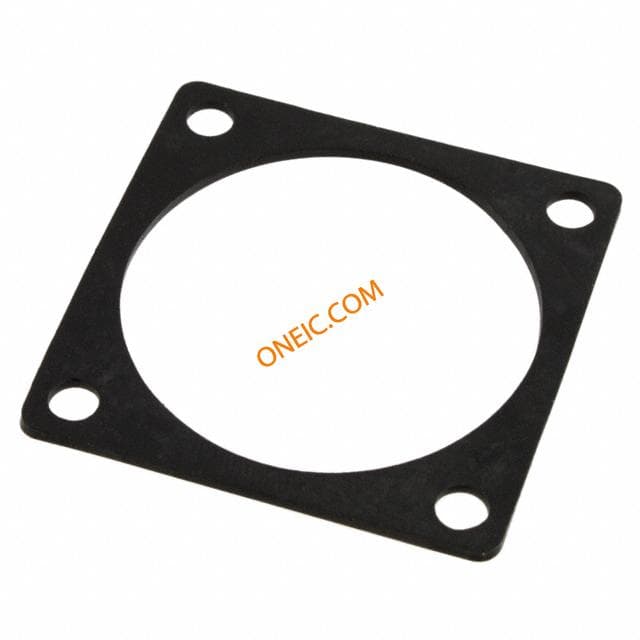

RTFD18B

Amphenol Sine Systems Corp

GASKET PANEL SHELL SIZE 18 Standard Circular Connector Panel Gasket GASKET, PANEL, RT360, SIZE 18 Connector accessories: socket gasket; Series: RT360 Panel gasket 18, RTFD18B, Amphenol RT PANEL GASKET SHELL 18

¥1.0452

详情

RT018DCG

Amphenol Sine Systems Corp

CONN RCPT DUST CAP SIZE 18 Standard Circular Connector Recptle Dust Cap Shell Size 19 DUST CAP, RT360 RECEPT, SIZE 18 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 18, RT018DCG, Amphenol

¥31.4976

详情

SP20W1F

Amphenol Sine Systems Corp

CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 20-22 CONTACT, PIN, S&F, SIZE 20, 20-22AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:20; male; 20÷22AWG; RT360; gold plated; crimped; tape RT PIN 3K GOLD WIRE RANGE 20-22

¥1.0064

详情

SP28W1F

Amphenol Sine Systems Corp

CONTACT PIN CRIMP 28-30AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 30-28 CONTACT, PIN, S&F, SIZE 20, 28-30AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 30-28 AWG; RT360 Series Contact; Size:20; male; 28÷30AWG; RT360; gold plated; crimped; tape Crimp pin, SP28W1F, Amphenol

¥1.1179

详情

暂无图片

MP20W23F

Amphenol Sine Systems Corp

CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Mach Pin Gld Flash Wire Range 20-22 Contact; Pin; Machined; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:20; male; 20÷22AWG; RT360; gold flash; crimped; 7.5A

¥10.3206

详情

MP28W23F

Amphenol Sine Systems Corp

CONTACT PIN CRIMP 28-30AWG GOLD Contact; Pin; Machined; Gold Flash; 30-28 AWG; RT360 Series Contact; Size:20; male; 28÷30AWG; RT360; gold flash; crimped; 7.5A

¥4.2840

详情
