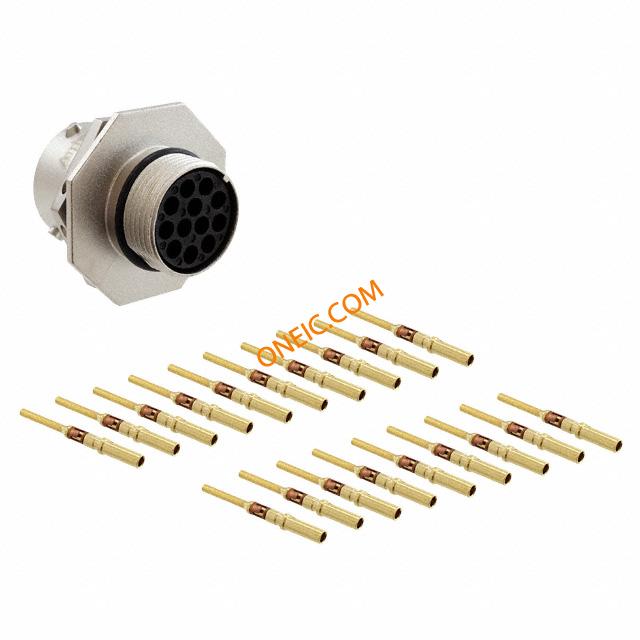

RT001619SNH-K
| 制造商 | |
| 描述 | CONN RCPT 19POS WALL MT SKTS KIT Standard Circular Connector Wall Mtg Recpt Sckt 16Awg 19 pin |
| 分类 |
商业参数
| 其他名称 | 889-1276 | 标准包装数量 | 5 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 300VAC/DC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Wall Mount |
| 端接方式 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | Receptacle |
| 第一触头极性 | Socket | 触点数 | 19 |
| 位数 | 19 | 外壳尺寸-插件 | 16-19 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 接触镀层厚度 | Flash |
产品信息
| 产品子类型 | Connector Kits | ||
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
相关型号
CA-4016-59
Amphenol Sine Systems Corp
CONN PLUG SEALING 16AWG Standard Circular Connector Sealing Plug 12AWG SEALING PLUG, RT360, 16AWG Connector accessories: sealing pin; Series: RT360; Size:16
RTFD16B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 16 Standard Circular Connector Panel Gasket Shell Size 16 GASKET, PANEL, RT360, SIZE 16 Connector accessories: socket gasket; Series: RT360 Panel gasket 16, RTFD16B, Amphenol RT PANEL GASKET SHELL 16
RT016DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 16 Standard Circular Connector Recptle Dust Cap Shell Size 18 DUST CAP, RT360 RECEPT, SIZE 16 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 16, RT016DCG, Amphenol
RT061619PNH-K
Amphenol Sine Systems Corp
CONN PLUG 19POS CBLE PIN KIT Standard Circular Connector Plug Pin 16Awg 19 pin
MS16M23S-10
Amphenol Sine Systems Corp
16AWG SOCKET CONTACT 10/BAG Standard Circular Contacts 16Awg Socket Contact 10 Piece Bag
RT0616-19PNH
Amphenol Sine Systems Corp
CONN HSG PLUG 19POS CABLE PINS PLUG, SIZE 16, 19WAY, PIN, IP67 Conn; Circular; Plug; 19 Pin; Male; 16 AWG; RT360 Series Connector: circular; male; Series: RT360; Case: size 16; plug; IP67 Cable plug RT360 Poles=19 Male Housing size16, RT0616-19PNH, Amphenol
