点击放大查看

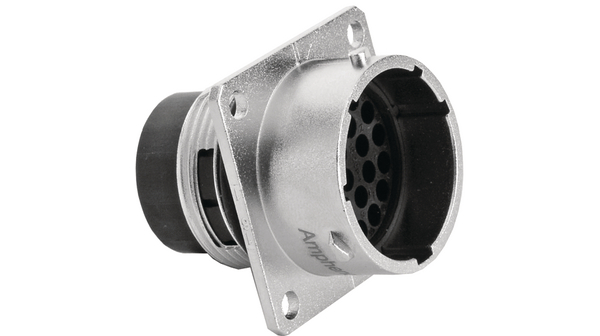

RT0016-26PNH

制造商	Amphenol Corporation
描述	CONN HSG RCPT 26POS WALL MT PINS Square flange receptacle RT360 Poles=26 Male Housing size16, RT0016-26PNH, Amphenol
分类	连接器解决方案圆形连接器军用圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压	150	极数	26
最大额定电流	5 A	保护电压（VP）（2416）	IP 67

机械参数

包装方式	Bulk	外壳尺寸	16
方向	N (Normal)	触点尺寸	20
触头类型	Crimp	安装类型	Panel Mount, Flange
连接器类型	Receptacle for Male Contacts	紧固类型	Bayonet Lock
连接器样式	with flange	锁定特性	Bayonet locking
壳体材料	Zinc Alloy	触点数	Size 20
位数	26	外壳尺寸-插件	16-26
第一连接器极性	Male	外壳材料及表面处理	Zinc Die Cast, Nickel Plated

产品信息

备注

Contacts Not Provided

系列

RT360

环境参数

防护等级

IP67/68 - Dust Tight, Waterproof

工作温度

-40...+105 °C
