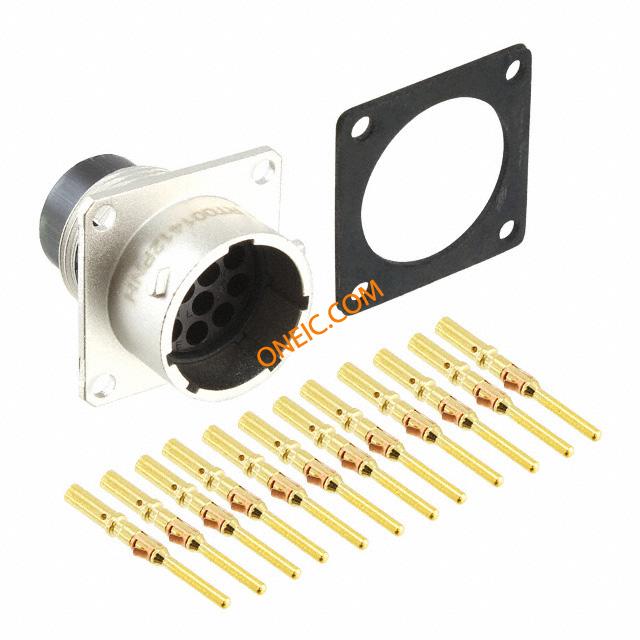

RT001412PNH-K
| 制造商 | |
| 描述 | CONN RCPT 12POS WALL MT PINS KIT Standard Circular Connector Wall Mtg Recpt Pin 16Awg 12 pin |
| 分类 |
商业参数
| 其他名称 | 889-1273 | 标准包装数量 | 5 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 300VAC/DC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Wall Mount |
| 端接方式 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | Receptacle |
| 第一触头极性 | Pin | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | 14-12 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 接触镀层厚度 | Flash |
产品信息
| 产品子类型 | Connector Kits | ||
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
相关型号

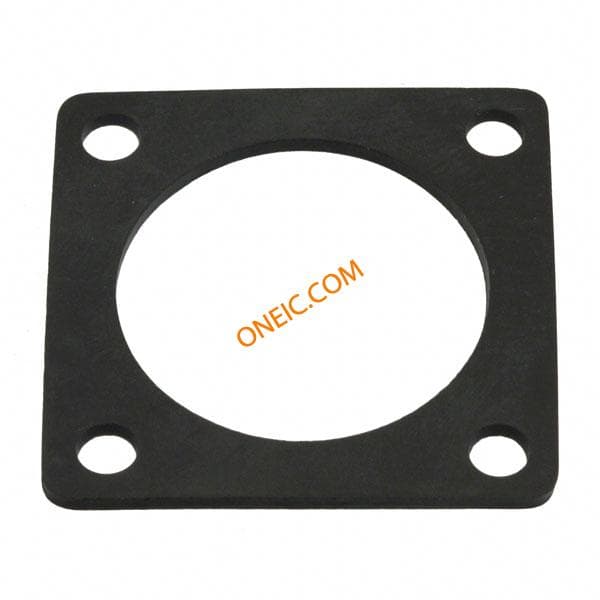

RTFD14B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 14 Standard Circular Connector Panel Gasket Shell Size 14 GASKET, PANEL, RT360, SIZE 14 Connector accessories: socket gasket; Series: RT360 Panel gasket 14, RTFD14B, Amphenol RT PANEL GASKET SHELL 14
RT014DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 14 Standard Circular Connector Recptle Dust Cap Shell Size 18 DUST CAP, RT360 RECEPT, SIZE 14 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 14, RT014DCG, Amphenol
RT0614-12SNH
Amphenol Sine Systems Corp
CONN HSG PLUG 12POS CABLE SKTS PLUG, SIZE 14, 12WAY, SKT, IP67 Conn; Circular; Plug; 12 Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 14; plug Cable plug RT360 Poles=12 Female Housing size14, RT0614-12SNH, Amphenol

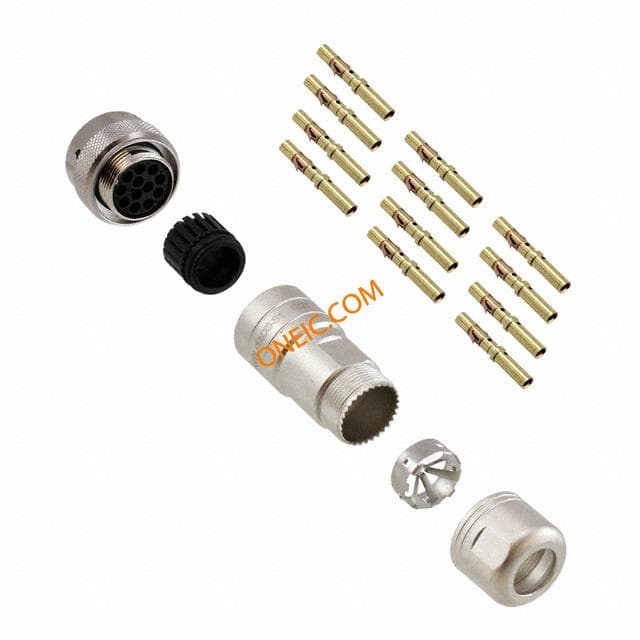

RT061412SNH-K
Amphenol Sine Systems Corp
CONN PLUG 12POS CBLE SKT KIT Standard Circular Connector Plug Socket 16Awg 12 pin
MP16M23F-10
Amphenol Sine Systems Corp
16AWG PIN CONTACT 10/BAG Standard Circular Contacts 16Awg Pin Contact 10 Piece Bag
