点击放大查看

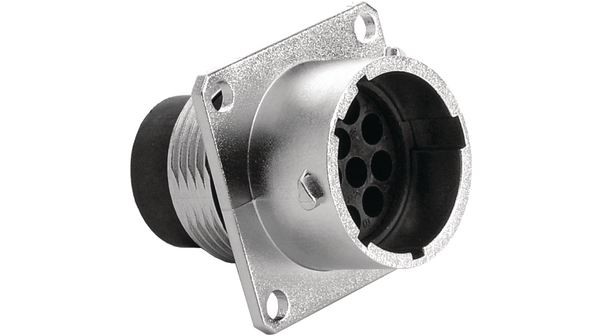

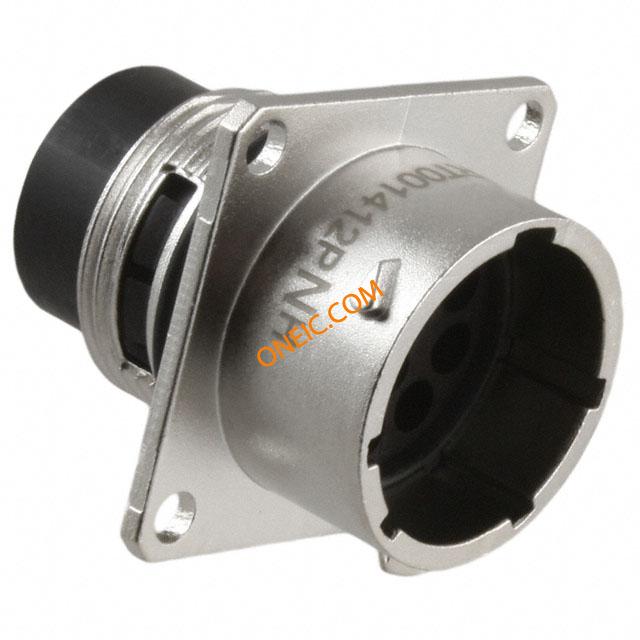

RT0014-12PNH
| 制造商 | |
| 描述 | CONN HSG RCPT 12POS WALL MT PINS RECEPTACLE,PANEL,SIZE 14, 12WAY, PIN Conn; Circular; Receptacla; Box Mount; 12 Pin; Male; 16 AWG; RT360 Series Connector: circular; male; Series: RT360; Case: size 14; socket Square flange receptacle RT360 Poles=12 Male Housing size14, RT0014-12PNH, Amphenol |
| 分类 |
商业参数
| 标准包装数量 | 50 | ||
合规参数
| 标准 | UL E63093 | 海关税号 | 85369010 |
电气参数
| 连接器类型 - 电压输入 | for size 16 terminals | ||
机械参数
| 重量 | 0.025 | 包装方式 | Bulk |
| 方向 | N (Normal) | 触点尺寸 | 16 |
| 触头类型 | Crimp | 基体材料 | aluminium, zinc |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | flange (4 holes), for panel mounting |
| 封装形式 | size 14 | 壳体镀层 | nickel |
| 插入角度 | :14-12 | 锁定特性 | external bayonet |
| 本体材料 | :Zinc Alloy | 包装数量 | 25 |
| 连接器 - 电缆 | socket | 第一触头极性 | :Pin |
| 位数 | 12 | 外壳尺寸-插件 | 14-12 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 连接器性别 | :Socket | 系列 | :RT360 |
| 适配器系列 | RT360 | 单元数量 | 25 |
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40...105°C |
相关型号
RTFD14B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 14 Standard Circular Connector Panel Gasket Shell Size 14 GASKET, PANEL, RT360, SIZE 14 Connector accessories: socket gasket; Series: RT360 Panel gasket 14, RTFD14B, Amphenol RT PANEL GASKET SHELL 14
RT014DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 14 Standard Circular Connector Recptle Dust Cap Shell Size 18 DUST CAP, RT360 RECEPT, SIZE 14 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 14, RT014DCG, Amphenol
SP20M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 20-22AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 20-22 CONTACT, PIN, SIZE 16, 22-20 AWG, CRIMP Contact; Pin; Stamped; 3K Reel; Gold Flash; 22-20 AWG; RT360 Series Contact; Size:16; male; 20÷22AWG; RT360; gold plated; crimped; tape Crimp pin, SP20M1F, Amphenol RT PIN 3K GOLD WIRE 20-22
SP16M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 16-18AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 16-18 CONTACT, PIN, S&F, SIZE 16, 16-18AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 18-16 AWG; RT360 Series Contact; Size:16; male; 16÷18AWG; RT360; gold plated; crimped; tape
SP24M1F
Amphenol Sine Systems Corp
CONTACT PIN CRIMP 24-26AWG GOLD Standard Circular Contacts Pin 3K Gold Flash Wire Range 24-26 CONTACT, PIN, S&F, SIZE 16, 24-26AWG Contact; Pin; Stamped; 3K Reel; Gold Flash; 26-24 AWG; RT360 Series Contact; Size:16; male; 24÷26AWG; RT360; gold plated; crimped; tape Crimp pin, SP24M1F, Amphenol
SP14M1F
Amphenol Sine Systems Corp
CONT PIN CRIMP 14AWG GOLD SZ 16 Standard Circular Contacts Pin 3K Gold Flash Wire Range 14 CONTACT, PIN, S&F, SIZE 16, 14AWG Contact; Pin; Stamped, ; 3K Reel; Gold Flash; 14 AWG; RT360 Series Contact; Size:16; male; 14AWG; RT360; gold plated; crimped; tape Crimp pin, SP14M1F, Amphenol
RT0614-12SNH
Amphenol Sine Systems Corp
CONN HSG PLUG 12POS CABLE SKTS PLUG, SIZE 14, 12WAY, SKT, IP67 Conn; Circular; Plug; 12 Pin; Female; 16 AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 14; plug Cable plug RT360 Poles=12 Female Housing size14, RT0614-12SNH, Amphenol
RT061412SNH-K
Amphenol Sine Systems Corp
CONN PLUG 12POS CBLE SKT KIT Standard Circular Connector Plug Socket 16Awg 12 pin
