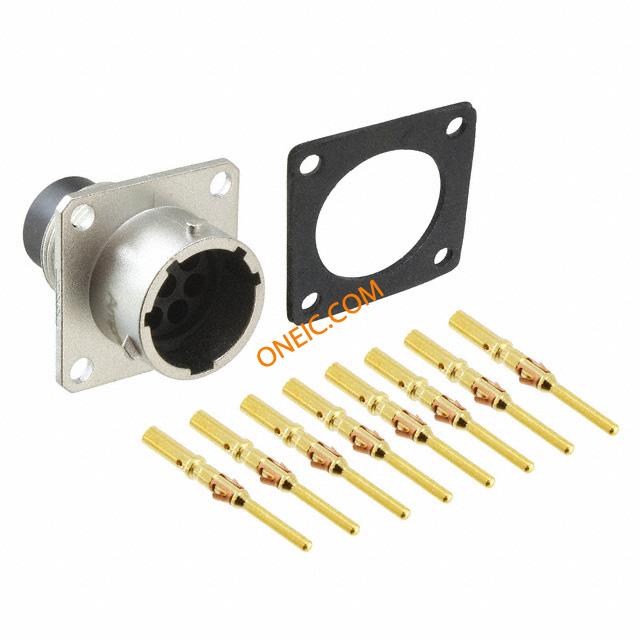

RT00128PNH-K
| 制造商 | |
| 描述 | CONN RCPT 8POS WALL MT PINS KIT Standard Circular Connector Wall Mtg Recpt Pin 16Awg 8 pin |
| 分类 |
商业参数
| 其他名称 | 889-1271 | 标准包装数量 | 5 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 300VAC/DC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Wall Mount |
| 端接方式 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | Receptacle |
| 第一触头极性 | Pin | 触点数 | 8 |
| 位数 | 8 | 外壳尺寸-插件 | 12-8 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 接触镀层厚度 | Flash |
产品信息
| 产品子类型 | Connector Kits | ||
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
相关型号
RT012DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 12 Standard Circular Connector Recptle Dust Cap Shell Size 19 DUST CAP, RT360 RECEPT, SIZE 12 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 12, RT012DCG, Amphenol
RT0612-8SNH
Amphenol Sine Systems Corp
CONN HSG PLUG 8POS CABLE SKTS PLUG, SIZE 12, 8WAY, SKT, IP67 Conn; Circular; Plug; 8 Pin; Female; 16AWG; RT360 Series Connector: circular; female; Series: RT360; Case: size 12; plug Cable plug RT360 Poles=8 Female Housing size12, RT0612-8SNH, Amphenol

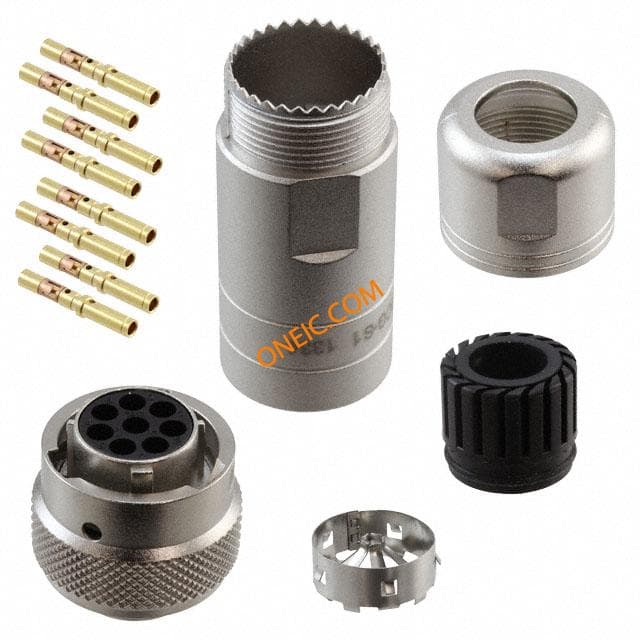

RT06128SNH-K
Amphenol Sine Systems Corp
CONN PLUG 8POS CABLE SKT KIT Standard Circular Connector Plug Socket 16Awg 8 pin CONN PLUG 8POS INLINE SKT KIT
RTFD12B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 12 Standard Circular Connector Panel Gasket Shell Size 12 GASKET, PANEL, RT360, SIZE 12 Connector accessories: socket gasket; Series: RT360 Panel gasket 12, RTFD12B, Amphenol RT PANEL GASKET SHELL 12
MP16M23F-10
Amphenol Sine Systems Corp
16AWG PIN CONTACT 10/BAG Standard Circular Contacts 16Awg Pin Contact 10 Piece Bag
