RT00104SNH-K
| 制造商 | |
| 描述 | CONN RCPT 4POS WALL MT SKTS KIT Standard Circular Connector Wall Mtg Recpt Sckt 16Awg 4 pin |
| 分类 |
商业参数
| 其他名称 | 889-1268 | 标准包装数量 | 5 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 300VAC/DC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Wall Mount |
| 端接方式 | Crimp | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | Receptacle |
| 第一触头极性 | Socket | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | 10-4 |
| 外壳材料及表面处理 | Zinc Die Cast, Nickel Plated | 接触镀层厚度 | Flash |
产品信息
| 产品子类型 | Connector Kits | ||
环境参数
| 防护等级 | IP67/68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
相关型号
CA-4016-59
Amphenol Sine Systems Corp
CONN PLUG SEALING 16AWG Standard Circular Connector Sealing Plug 12AWG SEALING PLUG, RT360, 16AWG Connector accessories: sealing pin; Series: RT360; Size:16
RT010DCG
Amphenol Sine Systems Corp
CONN RCPT DUST CAP SIZE 10 Standard Circular Connector Recptle Dust Cap Shell Size 18 DUST CAP, RT360 RECEPT, SIZE 10 Connector accessories: protection cover; Series: RT360 Receptacle dust cap 10, RT010DCG, Amphenol
RT06104PNH-K
Amphenol Sine Systems Corp
CONN PLUG 4POS CABLE PIN KIT Standard Circular Connector Plug Pin 16Awg 4 pin CONN PLUG 4POS INLINE PIN KIT
RTFD10B
Amphenol Sine Systems Corp
GASKET PANEL SHELL SIZE 10 Standard Circular Connector Panel Gasket Shell Size 10 GASKET, PANEL, RT360, SIZE 10 Connector accessories: socket gasket; Series: RT360 Panel gasket 10, RTFD10B, Amphenol

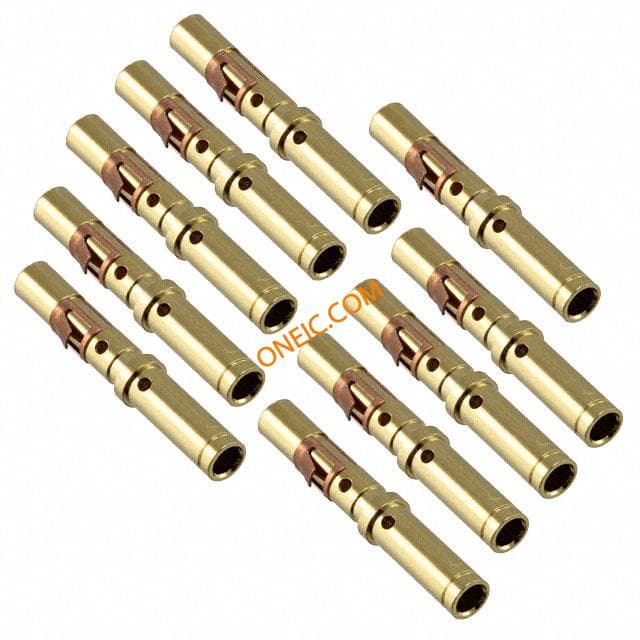

MS16M23S-10
Amphenol Sine Systems Corp
16AWG SOCKET CONTACT 10/BAG Standard Circular Contacts 16Awg Socket Contact 10 Piece Bag
RT0610-4PNH
Amphenol Sine Systems Corp
CONN HSG PLUG 4POS CABLE PINS PLUG, SIZE 10, 4WAY, PIN, IP67 Conn; Circular; Plug; 4 Pin; Male; 16 AWG; RT360 Series Connector: circular; male; Series: RT360; Case: size 10; plug; IP67 Cable plug RT360 Poles=4 Male Housing size10, RT0610-4PNH, Amphenol
