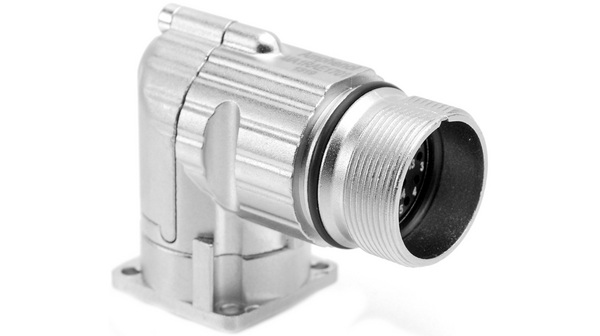

点击放大查看
MA1RAE1701
| 制造商 | |
| 描述 | CONN RCPT 17POS MALE TYPE E R/A Rotatable 90° Receptacle 17E 17, MA1RAE1701, Amphenol |
| 分类 |
商业参数
| 标准包装数量 | 168 | ||
电气参数
| 额定电压 | 160 | 极数 | 17 |
| 最大额定电流 | 9 A | 保护电压（VP）（2416） | IP 67 |
机械参数
| 包装方式 | Bulk | 方向 | E |
| 触点尺寸 | 1.0mm | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Right Angle | 连接器类型 | Receptacle for Male or Female Contacts |
| 紧固类型 | Threaded | 连接器样式 | accepts male or female contacts |
| 锁定特性 | Screw lock M23 x 1 | 触头材料 | Brass, gold-plated |
| 壳体材料 | Die-cast | 端接样式 | Crimp Connection |
| 连接器颜色 | silver | 位数 | 17 |
| 外壳尺寸-插件 | M23-17 | 第一连接器极性 | Neutral |
| 外壳材料及表面处理 | Zinc Die Cast | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | Motion Grade™ |
| 产品特性 | Shielded | 连接方式 | 1 |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -20...+130 °C |
