点击放大查看

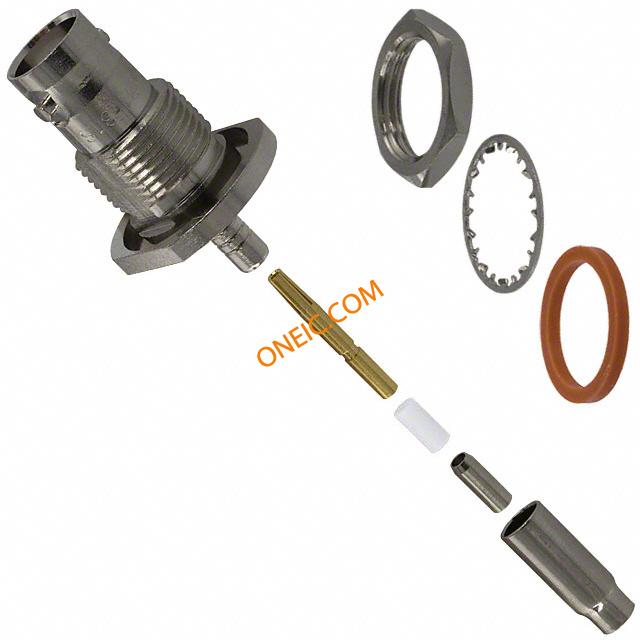

31-318
| 制造商 | |
| 描述 | RF Connectors BNC JACK CRIMP CONN BNC JACK STR 50 OHM CRIMP connector;rf coaxial;bnc bulkhead jack;rear mounted;crimp-crimp;rg174;188;316 RF Connectors / Coaxial Connectors BNC JACK CRIMP Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold RF/COAXIAL, BNC BHD JACK STR 50 OHM CRIMP |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-318 16R0579 51F3822 713-1088 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
机械参数
| 重量 | 0.703998 oz | 包装方式 | Bulk |
| 电缆类型 | RG-174, RG-188, RG-316, Belden 7805 | 本体表面处理 | Nickel |
| 电缆组 | RG-174, 188A | 方向 | Straight |
| 重量（g） | 19.60000 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount, Bulkhead - Front Side Nut |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC |
| 触头材料 | Phosphor Bronze | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 供应商器件封装 | Straight | ||
产品信息
| 连接器性别 | Jack | 极性 | Standard |
| 射频系列/标准 | BNC | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号
000-5275
amphenol
Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN PLUG BNC SHORTING W/O CHAIN Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Nickel; forJacksandRecep; Straight; 75Ohms
031-6
amphenol
Connector Accessories BNC 50Ohm Male Cap and Chain Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN BNC MALE CAP & CHAIN Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Nickel; forJacksandRecep; Str.; 75Ohms
CTL-2
amphenol
Quick Crimp Tool For Bnc And Tnc Crimp Plugs 2 And3 PC Types Crimpers CRIMP TOOL HEX SZ .178 .324 .068 CRIMP TOOL RG-174, BELDEN 8281 CRIMP TOOL tool, ratcheted hand crimp tool w/die set, cavities: .178, .324, .068 (see notes) Hex crimp tool with dies

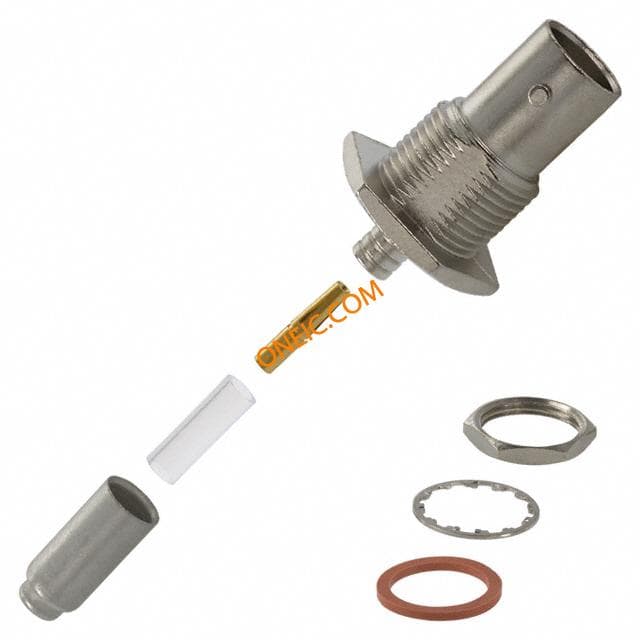

5413771-3
