点击放大查看

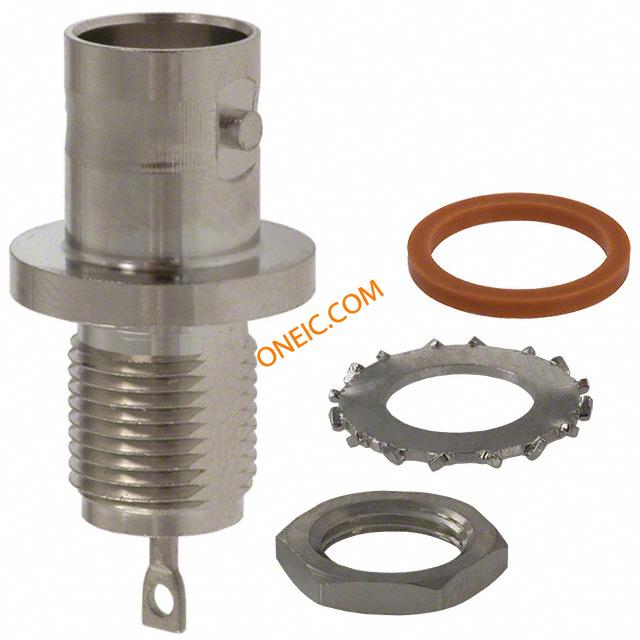

31-238
| 制造商 | Amphenol Corporation |
| 描述 | RF Connectors BNC BULKHEAD RECPT UG-912/U CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors BNC BULKHEAD RECPT UG-912/U Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-238 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
机械参数
| 重量 | 0.303991 oz | 包装方式 | Bulk |
| 本体表面处理 | Nickel | 方向 | Straight |
| 重量（g） | 11.97679 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount, Bulkhead - Rear Side Nut |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Silver |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC |
| 触头材料 | Beryllium Copper | 端接样式 | Flat Tab |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder Cup |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Silver |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Right Angle |
产品信息
| 连接器性别 | Jack | 产品特性 | Extended Insulation |
| 极性 | Standard | 射频系列/标准 | BNC |
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
