点击放大查看

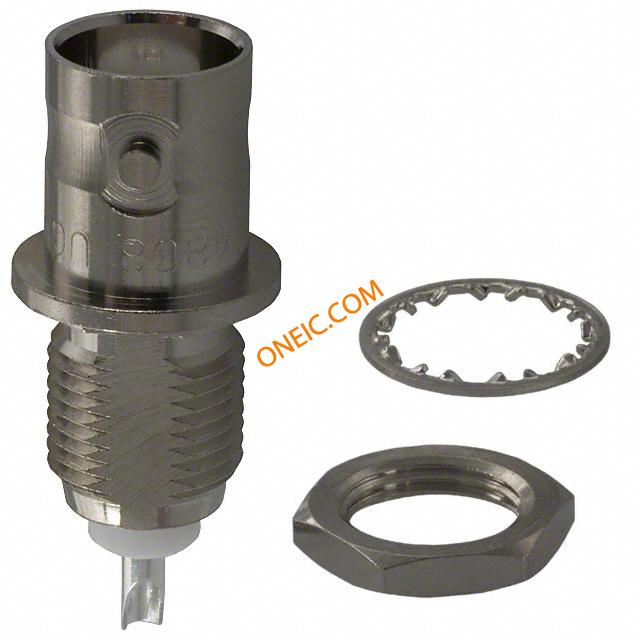

31-2221
| 制造商 | Amphenol Corporation |
| 描述 | RF Connectors FRT MNT RECEPT UG-1094A/U CONN BNC JACK STR 50 OHM SOLDER Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Silver RF/COAXIAL BNC BHD RCPT STR 50 OHM SOLDER |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| 海关税号 | 85369010 | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.009 | 包装方式 | Bulk |
| 电缆类型 | :- | 本体表面处理 | Nickel |
| 重量（g） | 9.20000 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount, Bulkhead - Rear Side Nut |
| 连接器类型 | Jack, Female Socket | 接触镀层 | :Silver |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC |
| 触头材料 | :- | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Silver | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | :Straight Bulkhead Jack | ||
产品信息
| 系列 | :- | 产品特性 | Extended Insulation |
环境参数
| 工作温度 | -65°C ~ 165°C | ||
文档与媒体
相关型号
000-5275
amphenol
Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN PLUG BNC SHORTING W/O CHAIN Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Nickel; forJacksandRecep; Straight; 75Ohms
031-6
amphenol
Connector Accessories BNC 50Ohm Male Cap and Chain Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN BNC MALE CAP & CHAIN Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Nickel; forJacksandRecep; Str.; 75Ohms
31-759
amphenol
Connector Accessories Shield Grounding Lug Nickel Finish BNC SHIELD GROUNDING LUG connector accessory;rf coaxial;bnc grounding lug;for front mount blkhd recept RF Connector Accessories GROUNDING LUG Connector Accessories Grounding Lug

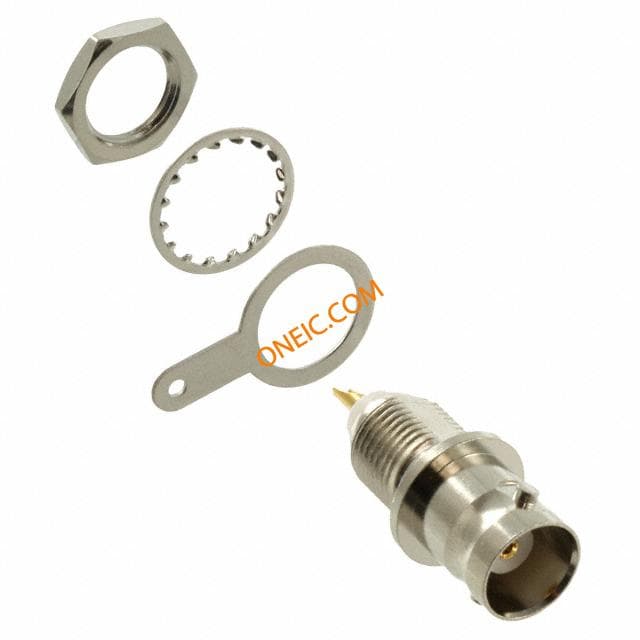

112426
