点击放大查看

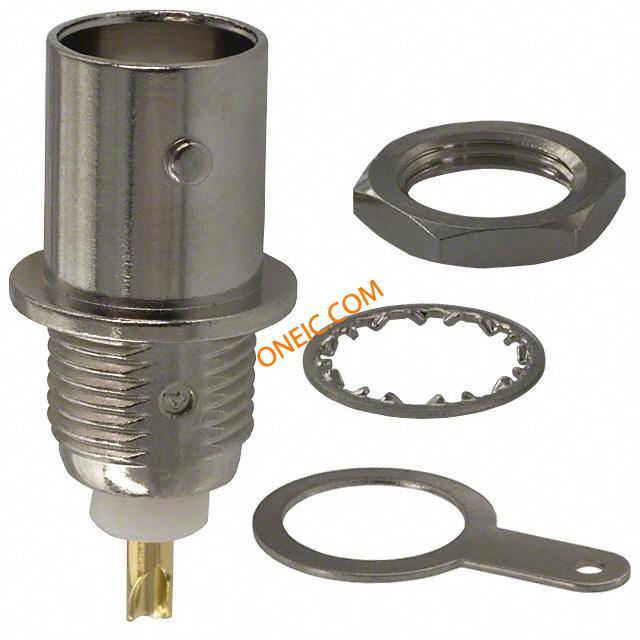

31-221-RFX
| 制造商 | Amphenol Corporation |
| 描述 | RF Connectors BULKHEAD JACK 50 ohm SOLDER CUP DIE CAST CONN BNC JACK STR 50 OHM SOLDER connector;rf coaxial;bnc commercial blkhd recept;front mount;solder cup;50 ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold RF/COAXIAL, BNC JACK, STR, 50OHM, SOLDER |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.005 | 包装方式 | Bulk |
| 电缆类型 | :RG58, RG59, RG179, RG316 | 本体表面处理 | Nickel |
| 基体材料 | Zinc Die Cast | 外壳颜色 | Silver |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut | 连接器类型 | Jack, Female Socket |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC, RFX |
| 触头材料 | :Phosphor Bronze | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polyoxymethylene (POM) Acetal |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | :Straight Bulkhead Jack | ||
产品信息
| 产品特性 | Extended Insulation | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
文档与媒体
相关型号
31-10152-RFX
Amphenol RF
RF Connectors GROUNDING LUG BNC GROUNDING LUG hardware;rf coaxial;grounding lug;bnc inside panel on bulkhead receptacle RF Connector Accessories GROUNDING LUG Connector Accessories BNC Grounding Lug GROUNDING LUG, 75 OHM BNC COAXIAL CONN

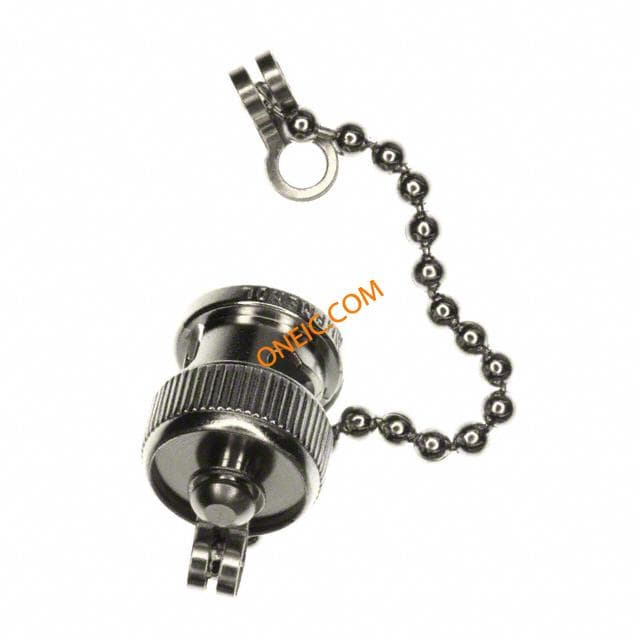

031-6-RFX
amphenol
Connector Accessories Cap and Chain Nickel Finish CONN BNC CAP & CHAIN
31-6
Amphenol RF
RF Connectors BNC CAP W/ CHAIN CW-123/U RF Connector Accessories BNC CAP W/ CHAIN CW-123/U Connector Accessories BNC 50Ohm Male Cap and Chain MALE CAP

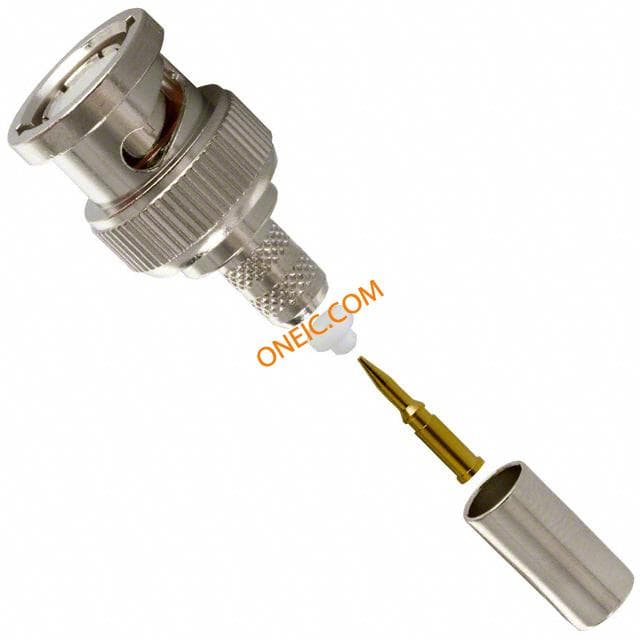

31-321-RFX
