点击放大查看

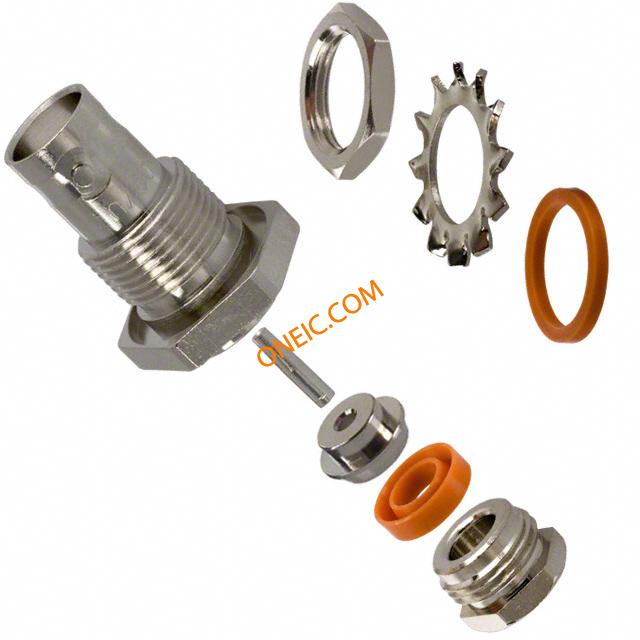

31-206

制造商	Amphenol Corporation
描述	RF Connectors BNC BLKHD CLAMP JACK RG55 142 UG-909/U CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors BNC BLKHD CLAMP JACK RG55 142 UG-909/U Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver RF/COAXIAL, BNC BHD JACK STR 50 OHM CLAMP
分类	连接器解决方案同轴连接器(RF)射频同轴连接器

对参数有疑问？问 AI 助手

商业参数

产品	Connectors	零件号别名	031-206 16R0544 713-1048 73K1427
产品类别	RF Connectors / Coaxial Connectors	标准包装数量	1

合规参数

RoHS

RoHS Compliant By Exemption

海关税号

85366910

电气参数

阻抗	50 Ohm	额定电压	500V
耦合系数	Bayonet	最大频率	4GHz

机械参数

重量	0.703998 oz	包装方式	Bulk
电缆类型	RG-55, RG-142, RG-223, Belden 7805	本体表面处理	Silver
电缆组	RG-55, 58	方向	Straight
基体材料	Brass	外壳颜色	Silver
安装类型	Panel Mount, Bulkhead - Rear Side Nut	连接器类型	Jack, Female Socket
接触镀层	Silver	紧固类型	Bayonet Lock
连接器样式	BNC	触头材料	Beryllium Copper
端接样式	Cable - Clamp	屏蔽层端接方式	Clamp
接触件端接	Solder	介电材料	Polytetrafluoroethylene (PTFE)
中心触点镀层工艺	Silver	中心触点材料	Beryllium Copper
供应商器件封装	Straight

产品信息

连接器性别	Jack	极性	Standard
射频系列/标准	BNC

环境参数

插拔次数

500

工作温度

-65°C ~ 165°C

文档与媒体

PDF 文档

Bulkhead Cable Jacks

相关型号

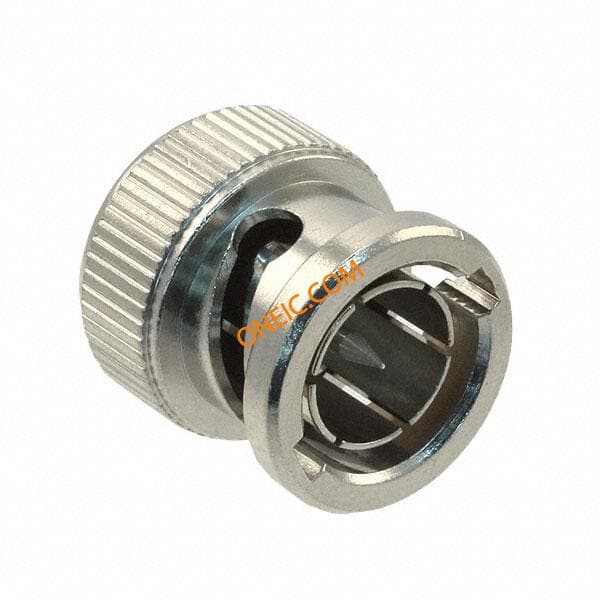

000-5275

amphenol

Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN PLUG BNC SHORTING W/O CHAIN Coaxial/RF; Cap-NoChain; BNC; Shorting; Male; Nickel; forJacksandRecep; Straight; 75Ohms

¥40.5280

详情

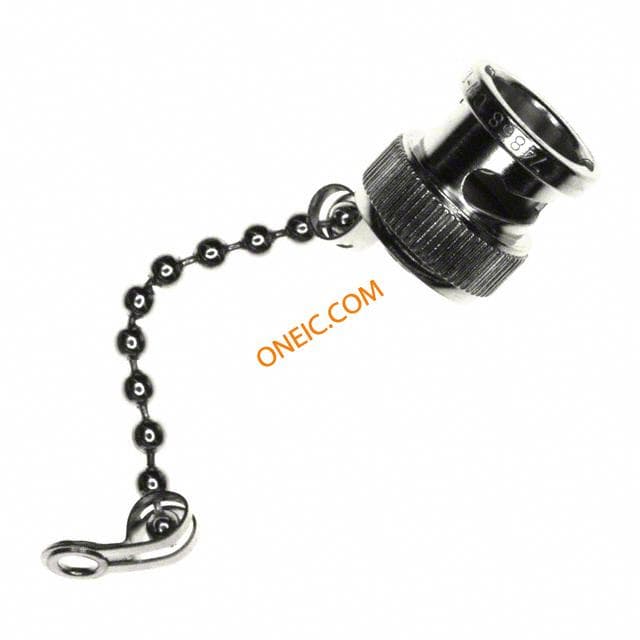

031-6

amphenol

Connector Accessories BNC 50Ohm Male Cap and Chain Connector Accessories BNC 51Ohm Male Shorting Cap and Chain Nickel CONN BNC MALE CAP & CHAIN Coaxial/RF; Cap-w/Chain; BNC; Protective; Male; Nickel; forJacksandRecep; Str.; 75Ohms

¥16.7960

详情

31-759

amphenol

Connector Accessories Shield Grounding Lug Nickel Finish BNC SHIELD GROUNDING LUG connector accessory;rf coaxial;bnc grounding lug;for front mount blkhd recept RF Connector Accessories GROUNDING LUG Connector Accessories Grounding Lug

¥3.8080

详情

8240 010U1000

Belden Wire & Cable

Coaxial Cables 20AWG 1C SHIELD 1000ft BOX BLACK CABLE, COAXIAL, RG-58A/U, 1000FT, BLACK RG-58A/U Type Coax cable, 20 AWG solid .033" bare copper conductor, polyethylene insulation, tinned copper braid shield, 1000’ boxes, PVC jacket, 30V, 80C

¥3343.1400

详情

8240 010U500

Belden Wire & Cable

Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK Coax - RG-58A/U type, 20 AWG solid .033" bare copper conductor, polyethylene insulation, 500’ boxes, tinned copper braid shield, PVC jacket

¥1839.1800

详情

8262 010U500

Belden Wire & Cable

Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK CABLE, COAXIAL, RG-58C/U, 20AWG, 50 OHM, 500FT, BLK Coax - 50 Ohm Coax M17/155-00001 Coax Black

¥2373.7200

详情

9223 0101000

Belden Wire & Cable

Coaxial Cables 22AWG 1C SHIELD 1000ft SPOOL BLACK COAXIAL CABLE, RG-58/U, 50 OHM, 22AWG (7X30), LOW TRIBOELECTRIC NOISE CABLE BLAC Coax - Low Noise 22 AWG LOW NOISE Coax Cable Black

¥6042.6840

详情

9223 010500

Belden Wire & Cable

Coaxial Cables 22AWG 1C SHIELD 500ft SPOOL BLACK COAXIAL CABLE; RG-58/U; 50 OHM; 22AWG (7X30); LOW TRIBOELECTRIC NOISE CABLE BLAC; 152m CABLE, COAXIAL, RG-58/U, 22AWG, 500FT, BLACK COAXIAL CABLE, RG-58/U, 50 OHM, 22AWG (7X30), LOW TRIBOELECTRIC NOISE CABLE BLAC

¥3968.2800

详情

8262 010U1000

Belden Wire & Cable

Coaxial Cables 20AWG 1C SHIELD 1000ft BOX BLACK Coax - 50 Ohm Coax M17/155-00001 Coax Black

¥4702.1400

详情

9201 010U500

Belden Wire & Cable

Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK COAXIAL CABLE, RG-58/U, 500FT, BLACK Coax - RG-58/U Type 20 AWGPE BRD PVCRG58/U Type Black

¥3207.2400

详情

8259 010U500

Belden Wire & Cable

Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK COAXIAL CABLE, RG-58A/U, 500FT, BLACK Coax - RG-58A/U Type RG-58A/U 50 OHMS Coax Black

¥2002.2600

详情

8259 010U1000

Belden Wire & Cable

Coaxial Cables 20AWG 1C SHIELD 1000ft BOX BLACK COAXIAL CABLE, RG-58A/U, 1000FT, BLACK Coax - RG-58A/U Type RG-58A/U 50 OHMS Coax Black

¥3132.0800

详情

9223 010100

Belden Wire & Cable

Coaxial Cables 22AWG 1C SHIELD 100ft SPOOL BLACK COAXIAL CABLE; RG-58/U; 50 OHM; 22AWG (7X30); LOW TRIBOELECTRIC NOISE CABLE BLAC; 30m CABLE, COAXIAL, RG-58/U, 22AWG, 50 OHM, 100FT, BLK COAXIAL CABLE, RG-58/U, 50 OHM, 22AWG (7X30), LOW TRIBOELECTRIC NOISE CABLE BLAC

¥1354.6700

详情

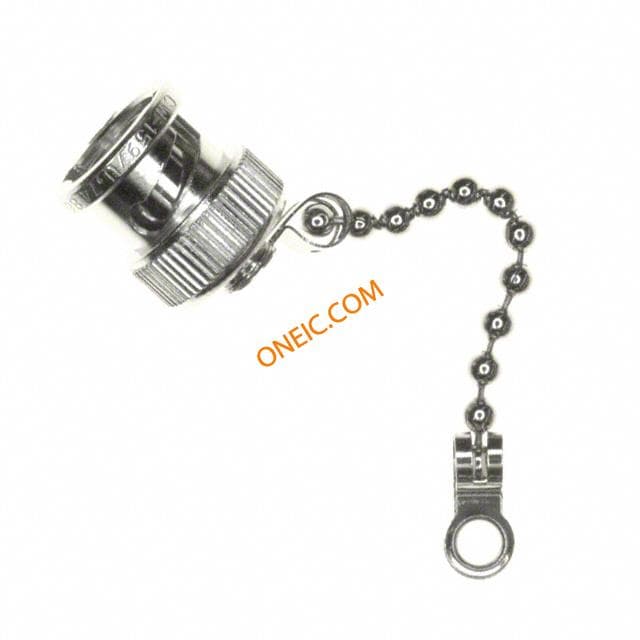

031-17
