点击放大查看

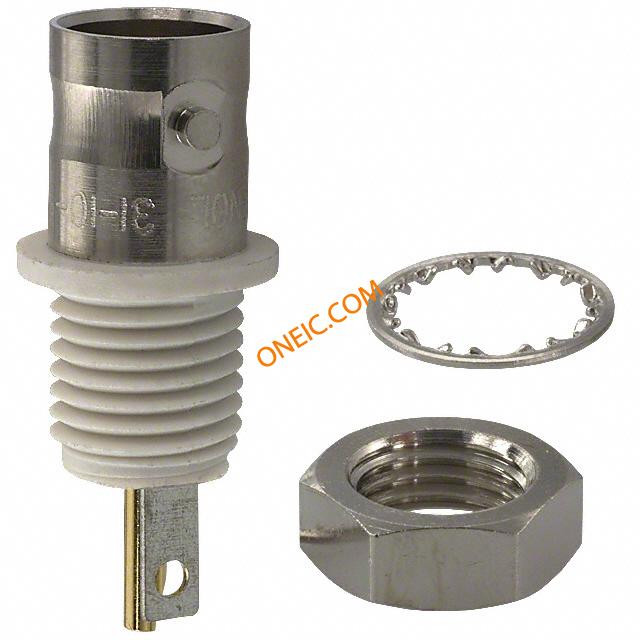

31-10-75

制造商	Amphenol Corporation
描述	RF Connectors BLHD FRT MNT JCK 75o CONN BNC JACK STR 75 OHM SOLDER connector;rf coaxial;bnc blkhd recept;front mount;ground tab;isolated;75 ohm Conn BNC RCP 0Hz to 4GHz 75Ohm Solder ST Panel Mount Gold RF/COAXIAL BNC BHD JACK STR 75 OHM SOLDER
分类	连接器解决方案同轴连接器(RF)射频同轴连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Compliant

海关税号

85369010

电气参数

阻抗	75 Ohm	额定电压	500V
最大频率	4GHz

机械参数

重量	0.009	包装方式	Bulk
电缆类型	:RG58, RG59, RG179, RG316	本体表面处理	Nickel
重量（g）	8.00000	基体材料	Brass
外壳颜色	Silver	安装类型	Panel Mount, Bulkhead - Rear Side Nut
连接器类型	Jack, Female Socket	紧固类型	Bayonet Lock
连接器样式	BNC	触头材料	:Beryllium Copper
屏蔽层端接方式	Solder	接触件端接	Solder Cup
介电材料	Polyamide (PA), Nylon	中心触点镀层工艺	Gold
中心触点材料	Phosphor Bronze	供应商器件封装	:Straight Bulkhead Jack

产品信息

产品特性

Isolated

环境参数

工作温度

-65°C ~ 165°C

文档与媒体

PDF 文档

127.pdf
