点击放大查看

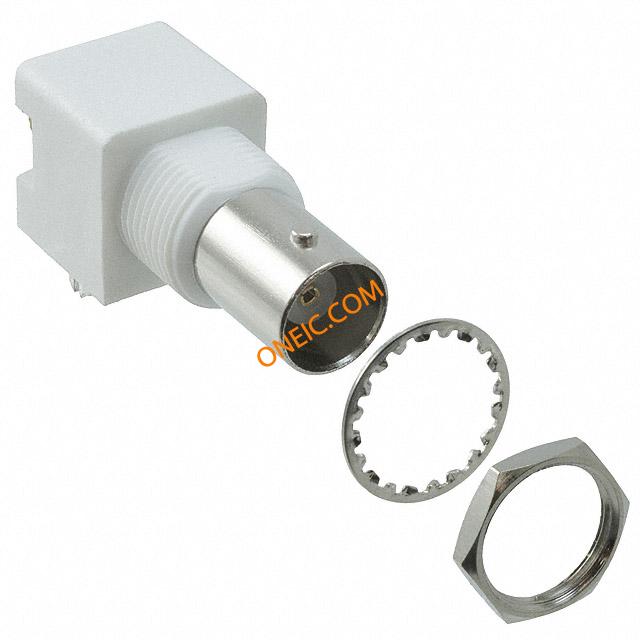

031-5431-10RFX
| 制造商 | Amphenol Corporation |
| 描述 | CONN BNC RCPT JACK R/A PCB WHT CONN BNC JACK R/A 50 OHM PCB Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold BULKHEAD JACK, BNC, R/A, 50OHM, SOLDER Connector; RF; BNC; Rt. Angle; PCB Jack; Bulkhead Mount; 50 Ohm; Nickel |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant Part | 海关税号 | 85366910 |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.009 | 包装方式 | Bulk |
| 电缆类型 | :RG58, RG59, RG179, RG316 | 本体表面处理 | Nickel |
| 基体材料 | Zinc Die Cast | 外壳颜色 | Silver |
| 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle | 连接器类型 | Jack, Female Socket |
| 接触镀层 | :Gold | 紧固类型 | Bayonet Lock |
| 连接器样式 | BNC, RFX | 触头材料 | :Phosphor Bronze |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polypropylene (PP) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | :Right Angle Bulkhead Jack |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 系列 | :BNC | 产品特性 | Board Lock |
环境参数
| 工作温度 | -55°C ~ 85°C | ||
文档与媒体
相关型号
031-6-RFX
amphenol
Connector Accessories Cap and Chain Nickel Finish CONN BNC CAP & CHAIN

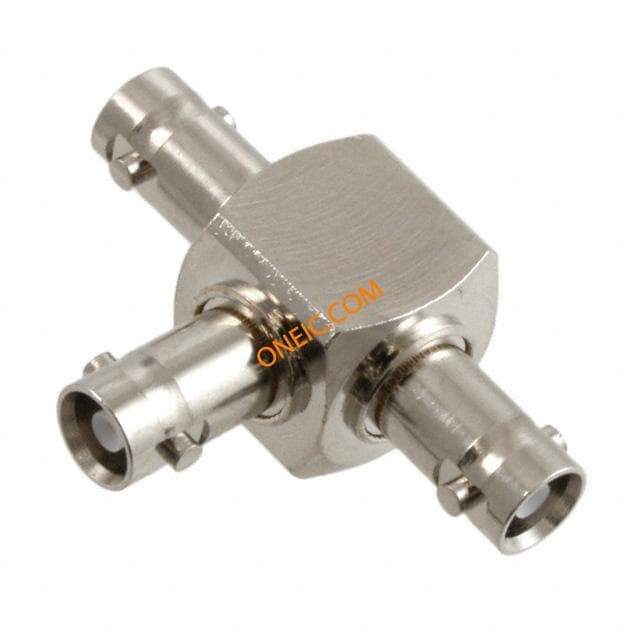

034-1023
amphenol
Conn BNC RCP/RCP/RCP 0Hz to 3GHz 75Ohm T Style Gold Bag ADAPTER TEE HDBNC JACK-JACK-JACK High density BNC jack, T adaptor T-ADAPTER, HD BNC, JACK X3 HD-BNC TEE Adapter, Jack ( 3 ) Adapter; RF; HD-BNC Jack-Jack-Jack; Tee; Nickel PLD Brass; 75 Ohm; PTFE HDBNC Jack-Jack-Jack Tree Adapter CONN ADAPT JACK-JACK HDBNC Amphenol T 形 75Ω 射频适配器 ST1 1D5D 05,0 944 1D0, 3GHz, BNC 插座 到 BNC 2 x 插座
31-5652
Amphenol RF
RF Connectors NUT ONLY 1 PIECE HEX NUT FOR BNC RECEPTACLE Screws & Fasteners NUT ONLY 1 PIECE Connector Accessories Hex Nut for BNC Bulkhead PCB Receptacle Nickel Finish HEX NUT
31-5653
Amphenol RF
RF Connectors WASHER ONLY 1 PIECE LOCKWASHER FOR BNC RECEPTACLE Screws & Fasteners WASHER ONLY 1 PIECE Connector Accessories Lock Washer for BNC Bulkhead PCB Receptacle Nickel Finish LOCKWASHER

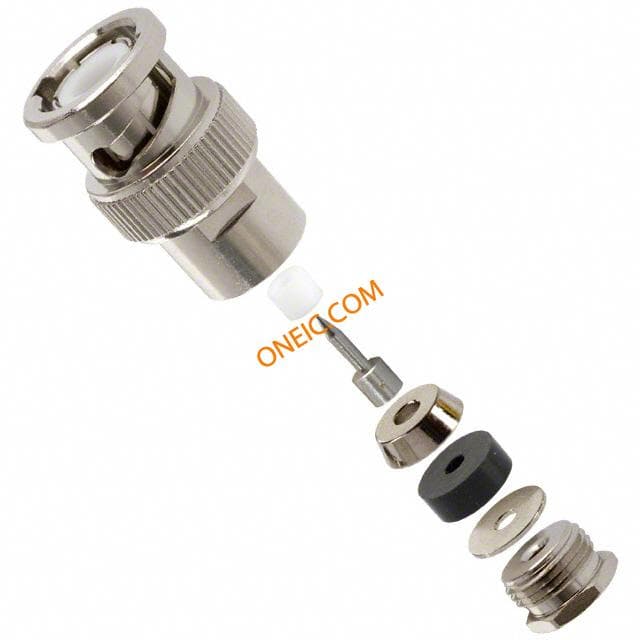

15875
Amphenol RF
RF Connectors ST CLMP PLG 178 196 CONN BNC PLUG STR 50 OHM SOLDER connector;rf coaxial;bnc straight plug;clamp/solder;for rg178;196 cable;50 ohm RF Connectors / Coaxial Connectors ST CLMP PLG 178 196 Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver ADAPTOR, RF COAXIAL, BNC TERM TYPE LEGEND H-C-C = Hex Crimp Center Contact and Braid O-C-C = "O" Crimp Center Contact and Braid H-C = Captive Center Contact and Braid H-C = Captive Center Contact and Braid * 10BASE-2 IEEE 802.3

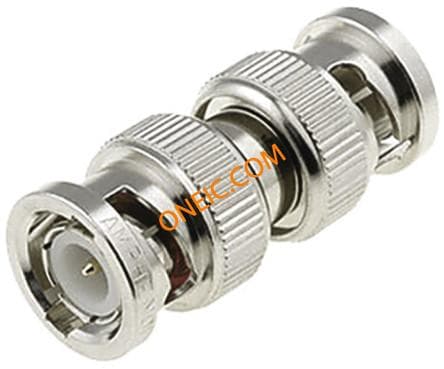

B2071A2-ND3G-50
